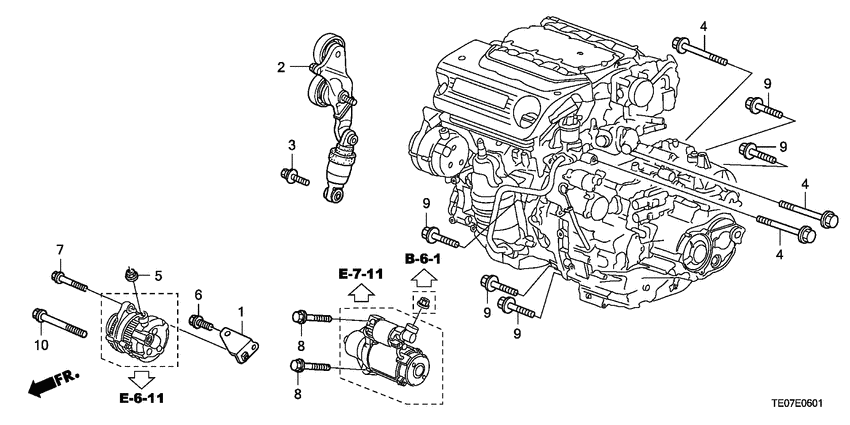

Alternator stay (V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31113-R70-A00
Stay
|
31113-R70-A00 |
— | ||
|
2
|
2
31170-R70-A01 Tensioner assyAUTO |
31170-R70-A01 |
US $338.44 |
||
|
3
|
3
90006-P8F-A00 Bolt-washer8X32 |
90006-P8F-A00 |
from US $1.61 |
||
|
4
|
4
90051-PE0-000 BoltFLANGE, 12X70 |
90051-PE0-000 |
US $3.42 |
||
|
5
|
5
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
6
|
6
95701-080-220-8 BoltFLANGE, 8X22 |
95701-080-220-8 |
from US $0.78 |
||
|
7
|
7
95701-080-350-8 BoltFLANGE, 8X35 |
95701-080-350-8 |
from US $0.74 |
||
|
8
|
8
95701-100-500-8 BoltFLANGE, 10X50 |
95701-100-500-8 |
from US $0.98 |
||
|
9
|
9
95701-120-550-8 BoltFLANGE, 12X55 |
95701-120-550-8 |
from US $1.18 |
||
|
10
|
10
95801-100-800-8 BoltFLANGE, 10X80 |
95801-100-800-8 |
from US $1.18 |
