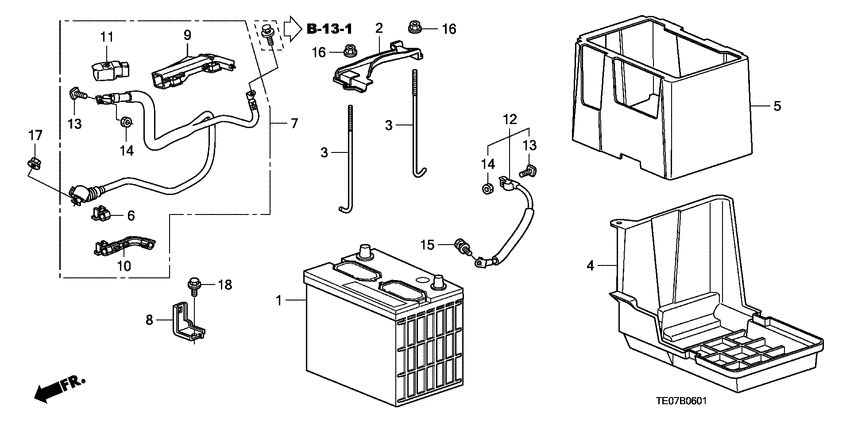

Battery (V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-SEP-X11
Battery assy
|
31500-SEP-X11 |
— | ||
|
2
|
2
31512-TA0-A10 PlateBATTERY SETTING |
31512-TA0-A10 |
US $10.26 |
||
|
3
|
3
31513-SP0-010 BoltBATTERY SETTING (210MM) |
31513-SP0-010 |
from US $3.03 |
||
|
4
|
4
31521-TA0-A10 BoxBATTERY(80D) |
31521-TA0-A10 |
US $12.93 |
||
|
5
|
5
31531-TA0-A10
Cover
|
31531-TA0-A10 |
— | ||
|
6
|
6
32116-P64-003 HolderCORRUGATED (DARK GREEN) (13MM) |
32116-P64-003 |
US $2.38 |
||
|
7
|
7
32410-TA0-A00 Cable assySTARTER |
32410-TA0-A00 |
US $86.40 |
||
|
8
|
8
32413-TA0-A00 BracketSTARTER CABLE(B) |
32413-TA0-A00 |
US $1.33 |
||
|
9
|
9
32415-TA0-003 ProtectorSTARTER CABLE |
32415-TA0-003 |
US $7.28 |
||
|
10
|
10
32416-TA0-003 HolderSTARTER CABLE |
32416-TA0-003 |
US $5.88 |
||
|
11
|
11
32418-PLA-300 CoverBATTERY TERMINAL |
32418-PLA-300 |
US $7.65 |
||
|
12
|
12
32600-TA6-A10 Cable assyBATTERY EARTH |
32600-TA6-A10 |
US $26.62 |
||
|
13
|
13
32601-SK7-900 BoltBATTERY TERMINAL |
32601-SK7-900 |
from US $2.81 |
||
|
14
|
14
32602-SK7-900 NutBATTERY TERMINAL |
32602-SK7-900 |
from US $2 |
||
|
15
|
15
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
16
|
16
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
17
|
17
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
18
|
18
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
