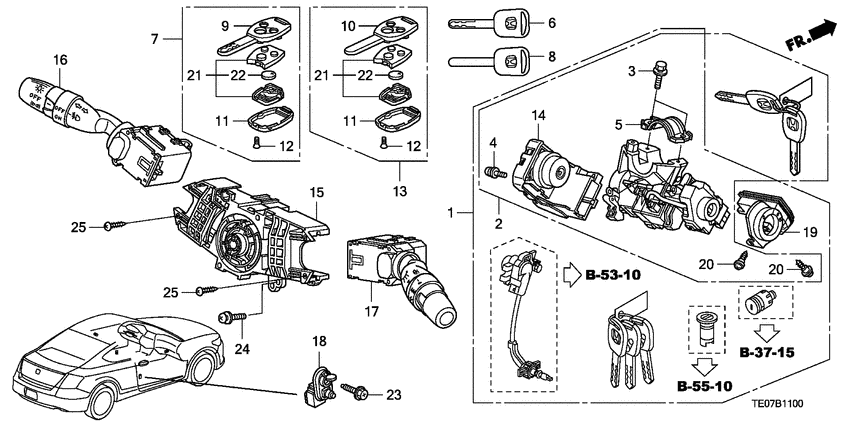

Combination switch Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06350-TE0-Y01
Cylinder set
|
06350-TE0-Y01 |
— | ||
|
2
|
2
06351-TE0-A11 Lock assySTEERING |
06351-TE0-A11 |
US $364.80 |
||
|
3
|
3
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
4
|
4
35103-S04-003 ScrewRECESSED |
35103-S04-003 |
US $1.61 |
||
|
5
|
5
35108-S30-003 HolderCOLUMN |
35108-S30-003 |
US $1.61 |
||
|
6
|
6
35111-SNB-A01
Key comp.
|
35111-SNB-A01 |
— | ||
|
6
|
6
35112-SWA-A01
Key comp.
|
35112-SWA-A01 |
— | ||
|
7
|
7
35111-TE0-U01
Key comp.
|
35111-TE0-U01 |
— | ||
|
8
|
8
35118-SNB-A00 Key comp.IMMOBILIZER (MAIN) (BLANK)(BLACK) |
35118-SNB-A00 |
US $37.81 |
||
|
8
|
8
35112-SWA-305 Key comp.IMMOBILIZER (SUB) (BLANK)(GRAY) |
35112-SWA-305 |
US $15.74 |
||
|
9
|
9
35113-SNB-J01
Key comp.
|
35113-SNB-J01 |
— | ||
|
10
|
10
35113-SNB-305 Key comp.TRANSMITTER TOP CASE (BLANK) |
35113-SNB-305 |
US $69.76 |
||
|
11
|
11
35114-SWW-E01 Bottom comp.TRANSMITTER KEY CASE |
35114-SWW-E01 |
from US $16.76 |
||
|
12
|
12
35116-SDA-A11 ScrewFLAT |
35116-SDA-A11 |
from US $1.96 |
||
|
13
|
13
35118-TE0-U00
Key comp.
|
35118-TE0-U00 |
— | ||
|
14
|
14
35130-TA0-901
Switch comp
|
35130-TA0-901 |
— | ||
|
15
|
15
35251-TA0-B11 Sensor assySTEERING & BODY SWITCH |
35251-TA0-B11 |
US $166.40 |
||
|
16
|
16
35255-TA0-X42
Switch assy
|
35255-TA0-X42 |
— | ||
|
17
|
17
35256-TA0-A12
Switch assy
|
35256-TA0-A12 |
— | ||
|
18
|
18
35400-S5A-013 Switch assyDOOR (MATSUSHITA) |
35400-S5A-013 |
US $10.28 |
||
|
19
|
19
39730-TE0-U01
Immobilizer & keyless unit
|
39730-TE0-U01 |
— | ||
|
20
|
20
72118-ST7-003 ScrewTAPPING, 3X5 |
72118-ST7-003 |
US $1.05 |
||
|
21
|
21
72147-TE0-U01
Module assy.
|
72147-TE0-U01 |
— | ||
|
22
|
22
72148-S0A-000 BatteryCR1616 |
72148-S0A-000 |
US $5.18 |
||
|
23
|
23
90132-SFE-003 ScrewEARTH, 5X18 |
90132-SFE-003 |
US $1.89 |
||
|
24
|
24
93893-050-140-8 Screw-washer5X14 |
93893-050-140-8 |
from US $0.52 |
||
|
25
|
25
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
