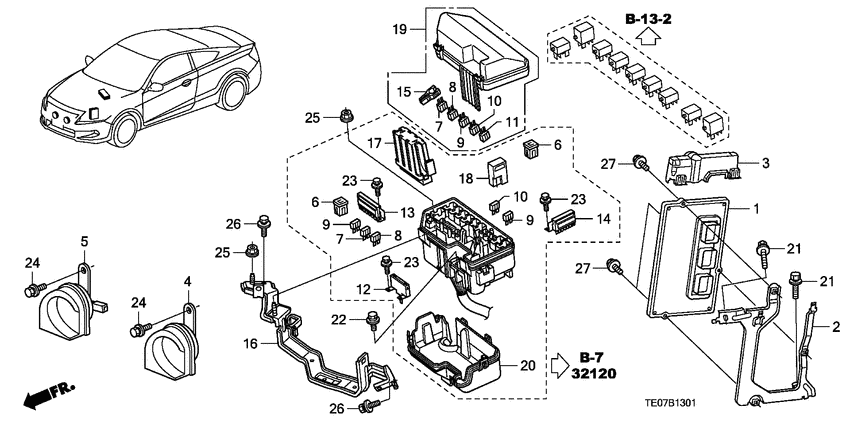

Control unit (ENGINE ROOM; 1; V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37820-R74-U59
Control module
|
37820-R74-U59 |
— | ||
|
2
|
2
37821-R70-A00 Bracket comp.ENGINE CONTROL MODULE |
37821-R70-A00 |
US $10.92 |
||
|
3
|
3
37823-R70-A00 CoverENGINE CONTROL MODULE |
37823-R70-A00 |
US $5.88 |
||
|
4
|
4
38100-STK-A02 Horn assyLOW |
38100-STK-A02 |
US $33.28 |
||
|
5
|
5
38150-TA0-A01 Horn assyHIGH |
38150-TA0-A01 |
from US $33.28 |
||
|
6
|
6
38211-SNA-A21 FuseBLOCK (40A) |
38211-SNA-A21 |
from US $3.08 |
||
|
7
|
7
38221-SNA-A31 FuseBLADE(7.5A) |
38221-SNA-A31 |
from US $2.31 |
||
|
8
|
8
38221-SNA-A41 FuseBLADE(10A) |
38221-SNA-A41 |
from US $2.31 |
||
|
9
|
9
38221-SNA-A51 FuseBLADE(15A) |
38221-SNA-A51 |
from US $2.31 |
||
|
10
|
10
38221-SNA-A61 FuseBLADE(20A) |
38221-SNA-A61 |
from US $2.31 |
||
|
11
|
11
38221-SNA-A81 FuseBLADE(30A) |
38221-SNA-A81 |
from US $0.88 |
||
|
12
|
12
38231-SFE-J01 Fuse aMULTI BLOCK (120A/40A) |
38231-SFE-J01 |
from US $10.51 |
||
|
13
|
13
38232-TA0-A11 FuseMULTI BLOCK(D-2) |
38232-TA0-A11 |
US $8.54 |
||
|
14
|
14
38233-TA0-A01 Fuse eMULTI BLOCK |
38233-TA0-A01 |
from US $9.93 |
||
|
15
|
15
38235-TA0-A01 PullerFUSE |
38235-TA0-A01 |
from US $1.19 |
||
|
16
|
16
38251-TA6-A00 BracketRELAY BOX |
38251-TA6-A00 |
US $25.86 |
||
|
17
|
17
38254-TA6-A01 Relay unit |
38254-TA6-A01 |
US $83.20 |
||
|
18
|
18
38255-SNA-003 Detector unitELECTRONIC LOAD |
38255-SNA-003 |
US $76.80 |
||
|
19
|
19
38256-TA6-003 CoverRELAY BOX (UPPER) |
38256-TA6-003 |
US $10.22 |
||
|
20
|
20
38257-TA0-A01 CoverLOWER |
38257-TA0-A01 |
US $16 |
||
|
21
|
21
90010-R70-000
Bolt-washer
|
90010-R70-000 |
— | ||
|
22
|
22
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $1.75 |
||
|
23
|
23
90129-TA0-000 Bolt-washer5X16 |
90129-TA0-000 |
US $1.68 |
||
|
24
|
24
90150-S84-003 BoltEARTH, 8X16 |
90150-S84-003 |
US $1.88 |
||
|
25
|
25
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
26
|
26
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
27
|
27
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
