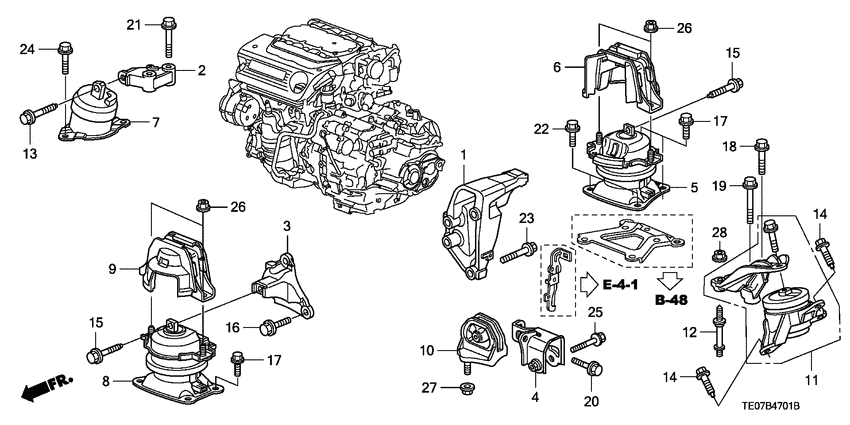

Engine mounts (V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50610-TA1-A00 BracketRR. ENGINE MOUNTING |
50610-TA1-A00 |
US $68.48 |
||
|
2
|
2
50620-TA1-A00 BracketENGINE SIDE MOUNTING |
50620-TA1-A00 |
US $25.47 |
||
|
3
|
3
50630-TA1-A00 BracketFR. ENGINE MOUNTING |
50630-TA1-A00 |
US $44.03 |
||
|
4
|
4
50650-TA1-A01 BracketTRANSMISSION LOWER MOUNTING |
50650-TA1-A01 |
US $13.86 |
||
|
5
|
5
50810-TA1-A01 Rubber assy.RR. ENGINE MOUNTING |
50810-TA1-A01 |
US $451.84 |
||
|
6
|
6
50815-TA1-A01
Stopper assy
|
50815-TA1-A01 |
— | ||
|
7
|
7
50820-TA1-A01 Rubber assy.ENGINE SIDE MOUNTING |
50820-TA1-A01 |
from US $106.24 |
||
|
8
|
8
50830-TA1-A01 Rubber assy.FR. ENGINE MOUNTING |
50830-TA1-A01 |
from US $451.84 |
||
|
9
|
9
50835-TA1-A01
Stopper assy
|
50835-TA1-A01 |
— | ||
|
10
|
10
50851-TA1-A01 RubberTRANSMISSION LOWER MOUNTING INSULATOR |
50851-TA1-A01 |
from US $38.02 |
||
|
11
|
11
50870-TA1-A01 Rubber assy.TRANSMISSION UPPER MOUNTING |
50870-TA1-A01 |
US $224 |
||
|
12
|
12
90160-TA1-A01 BoltTRANSMISSION UPPER MOUNTING (M12) |
90160-TA1-A01 |
US $13.70 |
||
|
13
|
13
90161-SDA-A01 BoltFLANGE, 12X45 |
90161-SDA-A01 |
US $2.28 |
||
|
14
|
14
90161-TA0-A01 BoltFLANGE, 10X25 |
90161-TA0-A01 |
US $2.52 |
||
|
15
|
15
90163-SDA-A01 BoltFLANGE, 10X35 |
90163-SDA-A01 |
US $1.61 |
||
|
16
|
16
90163-SDB-A00 BoltFLANGE, 10X30 |
90163-SDB-A00 |
from US $1.61 |
||
|
17
|
17
90163-S5A-000 BoltFLANGE, 10X20 |
90163-S5A-000 |
from US $1.19 |
||
|
18
|
18
90164-S5A-010 BoltFLANGE, 12X40 |
90164-S5A-010 |
US $2.22 |
||
|
19
|
19
90164-TA0-A00 BoltFLANGE, 12X60 |
90164-TA0-A00 |
US $4.06 |
||
|
20
|
20
90167-SAA-010 BoltFLANGE, 10X25 |
90167-SAA-010 |
from US $1.75 |
||
|
21
|
21
90168-TA1-A00 BoltFLANGE, 10X60 |
90168-TA1-A00 |
from US $2.73 |
||
|
22
|
22
90169-TA1-A00 BoltFLANGE, 10X25 |
90169-TA1-A00 |
US $2.52 |
||
|
23
|
23
90170-TA1-A00 BoltFLANGE, 12X56 |
90170-TA1-A00 |
US $3.64 |
||
|
24
|
24
90176-SKN-000 BoltFLANGE, 12X30 |
90176-SKN-000 |
US $2.03 |
||
|
25
|
25
90176-S3Y-000 BoltFLANGE, 10X65 |
90176-S3Y-000 |
US $2.45 |
||
|
26
|
26
90371-SEF-000 NutFLANGE, 12MM |
90371-SEF-000 |
US $1.72 |
||
|
27
|
27
90371-S87-A00 NutFLANGE, 10MM |
90371-S87-A00 |
US $1.61 |
||
|
28
|
28
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
