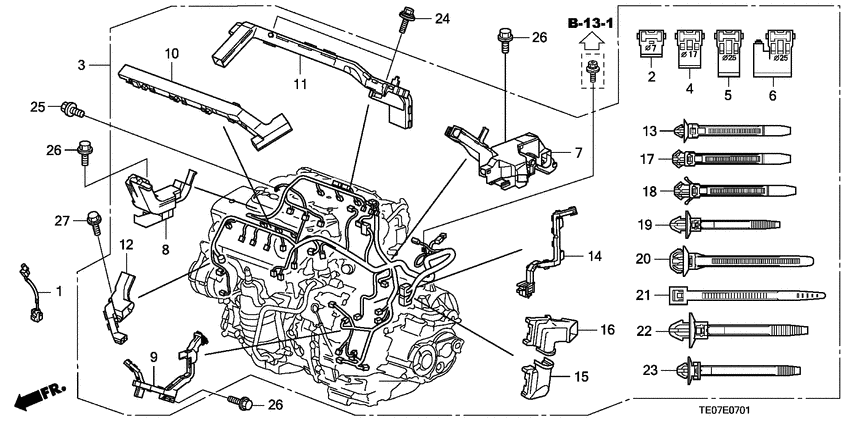

Engine wire harness (V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30531-R70-A00
Sub cord
|
30531-R70-A00 |
— | ||
|
2
|
2
32107-R70-A01 HolderCORRUGATED (DARK BROWN) (7MM) |
32107-R70-A01 |
US $1.61 |
||
|
3
|
3
32110-R70-A50 HarnessENGINE WIRE |
32110-R70-A50 |
US $952.32 |
||
|
4
|
4
32116-R40-003 HolderCORRUGATED(DARK BROWN) (17MM) |
32116-R40-003 |
US $1.61 |
||
|
5
|
5
32120-R70-A01 HolderCORRUGATED (BLACK) (25MM) |
32120-R70-A01 |
US $2.73 |
||
|
6
|
6
32121-R70-A01 HolderCORRUGATED(BLACK) (25MM) |
32121-R70-A01 |
US $3.43 |
||
|
7
|
7
32129-R70-A50 Holder comp. cENGINE HARNESS |
32129-R70-A50 |
US $32 |
||
|
8
|
8
32130-R70-A00 Holder comp. dENGINE HARNESS |
32130-R70-A00 |
US $10.22 |
||
|
9
|
9
32131-R70-A50 Holder comp. eENGINE HARNESS |
32131-R70-A50 |
US $16.90 |
||
|
10
|
10
32132-R70-A00 Holder fWIRE HARNESS |
32132-R70-A00 |
US $11.90 |
||
|
11
|
11
32133-R70-A00 Holder comp. gENGINE HARNESS |
32133-R70-A00 |
US $27.26 |
||
|
12
|
12
32134-R70-A00 Holder comp. hENGINE HARNESS |
32134-R70-A00 |
US $7.56 |
||
|
13
|
13
32134-SM4-003 BandHARNESS OFFSET (10) (BROWN) (122.5MM) |
32134-SM4-003 |
from US $3.03 |
||
|
14
|
14
32137-R70-A00 HolderL. ENGINE HARNESS |
32137-R70-A00 |
US $11.90 |
||
|
15
|
15
91501-R40-A00 CoverENGINE CONTROL MODULE COUPLER(A,B) |
91501-R40-A00 |
US $4.20 |
||
|
16
|
16
91502-R70-A00 CoverENGINE CONTROL MODULE COUPLER |
91502-R70-A00 |
US $6.44 |
||
|
17
|
17
91506-RTA-003 Clip AHARNESS BAND (DARK VIOLET)(129.4MM) |
91506-RTA-003 |
US $3.26 |
||
|
18
|
18
91507-RTA-003 Clip bHARNESS BAND (DARK GREEN) (129.4MM) |
91507-RTA-003 |
from US $2.31 |
||
|
19
|
19
91507-SL9-003 ClipWIRE HARNESS (GREEN) (110MM) (7MM HOLE) |
91507-SL9-003 |
from US $1.68 |
||
|
20
|
20
91542-SNA-003 ClipHARNESS BAND(DARK BLUE) (164.5MM) |
91542-SNA-003 |
from US $0.90 |
||
|
21
|
21
91551-PNA-003 BandWIRE HARNESS (BLACK) (172MM) |
91551-PNA-003 |
from US $1.61 |
||
|
22
|
22
91558-P8C-A01 ClipHARNESS BAND (VIOLET) (150MM) |
91558-P8C-A01 |
US $1.89 |
||
|
23
|
23
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
24
|
24
93404-060-250-8 Bolt-washer6X25 |
93404-060-250-8 |
from US $0.62 |
||
|
25
|
25
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
26
|
26
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
27
|
27
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
