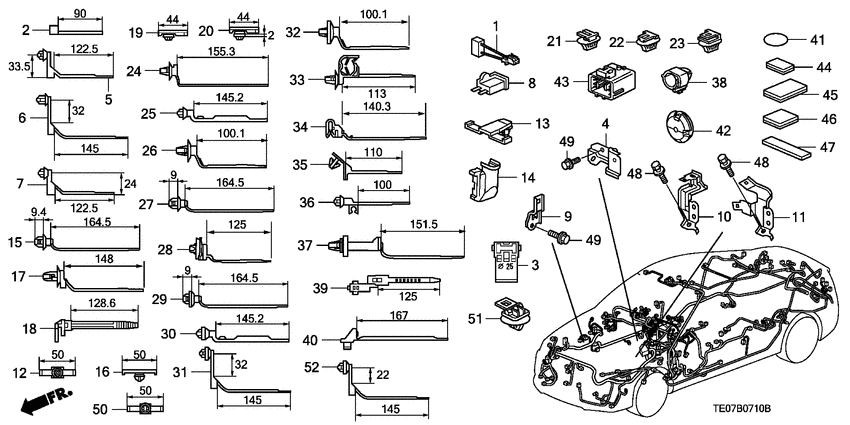

Harness band/bracket Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30510-TA0-A01 Condenser comp.1.0 MICRO F |
30510-TA0-A01 |
US $18.43 |
||
|
2
|
2
32112-S2K-003 BandCABLE (90MM) |
32112-S2K-003 |
US $1.61 |
||
|
4
|
4
32121-TA0-A00 BracketCABIN WIRE HARNESS |
32121-TA0-A00 |
US $1.82 |
||
|
5
|
5
32132-S6A-003 BandWIRE HARNESS OFFSET(20) (DARK GREEN)(122.5MM) |
32132-S6A-003 |
US $2.73 |
||
|
6
|
6
32133-SLA-003 BandHARNESS OFFSET(30) (DARK GRAY)(145MM) |
32133-SLA-003 |
from US $0.46 |
||
|
8
|
8
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
9
|
9
32611-TA0-A00 BracketSUB EARTH CABLE |
32611-TA0-A00 |
US $1.19 |
||
|
10
|
10
32747-R70-A00
Stay g
|
32747-R70-A00 |
— | ||
|
12
|
12
90627-SA5-003 ClipWIRE HARNESS(BLUE) (HARNESS TAPING)(50MM) |
90627-SA5-003 |
from US $1.82 |
||
|
13
|
13
91476-SB6-003 ClipROOF ARCH(NATURAL) (HARNESS TAPING)(60MM) |
91476-SB6-003 |
US $2.03 |
||
|
14
|
14
91501-R40-A00 CoverENGINE CONTROL MODULE COUPLER(A,B) |
91501-R40-A00 |
US $4.20 |
||
|
15
|
15
91507-SNA-003 ClipHARNESS BAND(BROWN) (164.5MM) |
91507-SNA-003 |
from US $0.90 |
||
|
16
|
16
91507-693-003 ClipWIRE HARNESS (BLACK) (50MM) (HARNESS TAPING) |
91507-693-003 |
from US $1.89 |
||
|
17
|
17
91508-STX-A00 ClipHARNESS BAND(BLACK) (148MM) |
91508-STX-A00 |
US $2.31 |
||
|
18
|
18
91531-SR3-003 HolderCOUPLER (NATURAL) (128.6MM) |
91531-SR3-003 |
from US $1.89 |
||
|
19
|
19
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
US $1.33 |
||
|
20
|
20
91531-S84-003 ClipWIRE HARNESS(NATURAL) (44MM)(WITH SEAL) |
91531-S84-003 |
US $2.17 |
||
|
21
|
21
91533-STK-003 ClipCOUPLER(NATURAL) |
91533-STK-003 |
from US $3.08 |
||
|
22
|
22
91534-SWA-003 ClipCOUPLER(DARK GRAY) |
91534-SWA-003 |
from US $4.14 |
||
|
23
|
23
91536-STK-003 ClipRELAY HOLDER(NATURAL) |
91536-STK-003 |
from US $1.01 |
||
|
24
|
24
91540-STK-003 ClipHARNESS BAND (BLACK) (155.3MM) |
91540-STK-003 |
from US $3.11 |
||
|
25
|
25
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
26
|
26
91540-TA0-003 ClipHARNESS BAND(NATURAL) (100.1MM) |
91540-TA0-003 |
from US $0.46 |
||
|
27
|
27
91542-SNA-003 ClipHARNESS BAND(DARK BLUE) (164.5MM) |
91542-SNA-003 |
from US $0.90 |
||
|
28
|
28
91545-SJA-003 ClipWIRE HARNESS(SEAL) (125MM) |
91545-SJA-003 |
US $2.24 |
||
|
29
|
29
91545-SNA-003 ClipHARNESS BAND(DARK BLUE) (164.5MM)(WITH SEAL) |
91545-SNA-003 |
US $1.89 |
||
|
30
|
30
91545-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) (WITH SEAL) |
91545-SV4-003 |
US $3.11 |
||
|
31
|
31
91545-SYA-003 BandHARNESS OFFSET (GRAY) (145MM) |
91545-SYA-003 |
US $3.08 |
||
|
32
|
32
91545-TA0-003 ClipHARNESS BAND(NATURAL) (100.1MM)(WITH SEAL) |
91545-TA0-003 |
US $2.73 |
||
|
33
|
33
91549-STK-003 HolderHARNESS (NATURAL) (113MM) |
91549-STK-003 |
US $4.20 |
||
|
34
|
34
91549-TA0-003 ClipHARNESS BAND(BLACK) (140.3MM) |
91549-TA0-003 |
from US $1.46 |
||
|
35
|
35
91550-ST0-003 ClipWIRE HARNESS (NATURAL) (110MM) |
91550-ST0-003 |
US $1.68 |
||
|
36
|
36
91556-SM4-003 ClipBAND (BLACK) (100MM) |
91556-SM4-003 |
US $2.31 |
||
|
37
|
37
91558-SAA-003 ClipHARNESS BAND(30)(BLACK) (151.5MM) |
91558-SAA-003 |
from US $1.01 |
||
|
38
|
38
91558-TA0-003 ClipWIRE HARNESS(BLACK) |
91558-TA0-003 |
from US $1.43 |
||
|
39
|
39
91559-ST5-003 ClipHARNESS BAND OFFSET(30) (NATURAL) |
91559-ST5-003 |
US $1.96 |
||
|
40
|
40
91559-S47-003 ClipHARNESS BAND(NATURAL) (167MM) |
91559-S47-003 |
US $2.03 |
||
|
41
|
41
91619-SE0-000 SealDOOR HOLE, 30MM(BLACK) |
91619-SE0-000 |
from US $1.33 |
||
|
42
|
42
91661-TA0-003 HolderHARNESS(BLACK) |
91661-TA0-003 |
US $3.78 |
||
|
44
|
44
91902-SJA-000 PlasterWIRE HARNESS (25X50) |
91902-SJA-000 |
US $1.05 |
||
|
45
|
45
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
46
|
46
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
47
|
47
91902-TA0-000 PlasterWIRE HARNESS(25X100) |
91902-TA0-000 |
US $1.19 |
||
|
48
|
48
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
49
|
49
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
