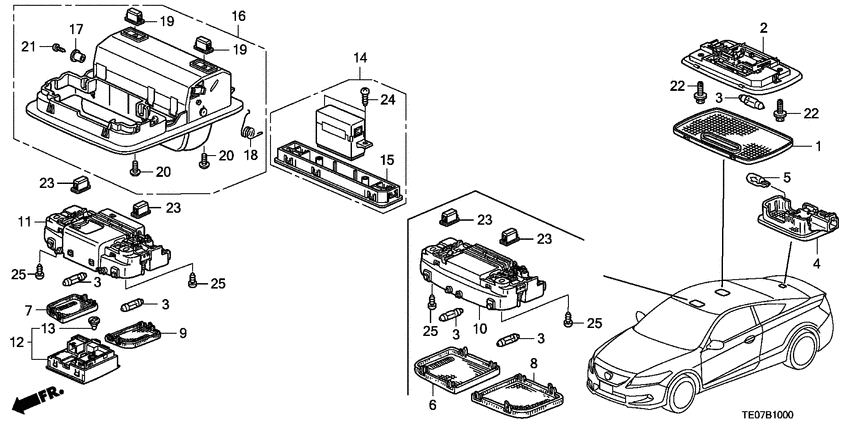

Interior light Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34251-S5A-003 Lens |
34251-S5A-003 |
from US $6.02 |
||
|
2
|
2
34252-S5A-003ZP Base comp. *yr327l* |
34252-S5A-003ZP |
US $24.83 |
||
|
2
|
2
34252-S5A-003ZT Base comp. *nh686l* |
34252-S5A-003ZT |
US $24.83 |
||
|
3
|
3
34253-671-003
Bulb
|
34253-671-003 |
— | ||
| replacement | |||||
|
3
|
3
04110-SWA-305 BULB T10X318W |
04110-SWA-305 |
from US $3.09 |
||
|
4
|
4
34261-S5A-003 Lens comp |
34261-S5A-003 |
US $10.78 |
||
|
5
|
5
34295-SJ8-003 Bulb12V 5W) (DAIICHI |
34295-SJ8-003 |
US $3.66 |
||
| replacement | |||||
|
5
|
5
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
7
|
7
34401-SDA-A21 LensR. |
34401-SDA-A21 |
from US $3.36 |
||
|
9
|
9
34402-SDA-A21 LensL. |
34402-SDA-A21 |
from US $3.36 |
||
|
11
|
11
34404-SDA-A22 Base comp. |
34404-SDA-A22 |
US $61.93 |
||
|
12
|
12
35830-TA0-A01ZB
Switch assy
|
35830-TA0-A01ZB |
— | ||
|
12
|
12
35830-TA0-A01ZA
Switch assy
|
35830-TA0-A01ZA |
— | ||
|
13
|
13
35831-SMA-003 Bulb comp.14V 60MA |
35831-SMA-003 |
US $3.50 |
||
|
14
|
14
39210-TA0-A21ZB Microphone assyANC *YR327L* |
39210-TA0-A21ZB |
US $68.48 |
||
|
14
|
14
39210-TA0-A21ZA Microphone assyANC *NH686L* |
39210-TA0-A21ZA |
US $68.48 |
||
|
15
|
15
39211-TA0-A21ZB Garnish *yr327l* |
39211-TA0-A21ZB |
US $23.55 |
||
|
15
|
15
39211-TA0-A21ZA Garnish *nh686l* |
39211-TA0-A21ZA |
US $23.55 |
||
|
16
|
16
83250-TA5-A51ZB
Console assy
|
83250-TA5-A51ZB |
— | ||
|
16
|
16
83250-TA5-A51ZA
Console assy
|
83250-TA5-A51ZA |
— | ||
|
17
|
17
83251-SDA-A01
Bush
|
83251-SDA-A01 |
— | ||
|
18
|
18
83252-TA5-A01
Spring
|
83252-TA5-A01 |
— | ||
|
19
|
19
83253-TA0-A01 GrommetSCREW, 5MM |
83253-TA0-A01 |
US $1.33 |
||
|
20
|
20
83254-TA0-A01 ScrewTAPPING, 5X12 |
83254-TA0-A01 |
US $0.42 |
||
|
21
|
21
83255-SDA-A01
Screw
|
83255-SDA-A01 |
— | ||
|
22
|
22
90148-S6A-013 BoltEARTH, 5X14 |
90148-S6A-013 |
US $1.19 |
||
|
23
|
23
91560-TE0-A01
Clip
|
91560-TE0-A01 |
— | ||
|
24
|
24
93901-24310 ScrewTAPPING, 4X12 |
93901-24310 |
from US $0.37 |
||
|
25
|
25
93913-25220 ScrewTAPPING, 5X12 (PO) |
93913-25220 |
from US $0.37 |
||
