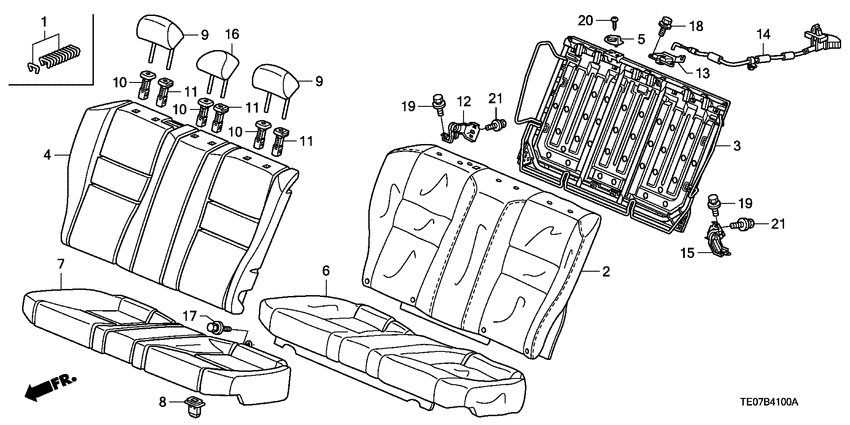

Rear seat Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04810-SB3-000 C clip setTRIM FASTENER (30 PIECES) |
04810-SB3-000 |
from US $4.74 |
||
|
2
|
2
82121-TE0-Y41ZB
Cover
|
82121-TE0-Y41ZB |
— | ||
|
2
|
2
82121-TE0-Y41ZA
Cover
|
82121-TE0-Y41ZA |
— | ||
|
3
|
3
82126-TE0-A01
Frame comp
|
82126-TE0-A01 |
— | ||
|
4
|
4
82124-TE0-A41
Pad comp
|
82124-TE0-A41 |
— | ||
|
5
|
5
82128-TA5-A01ZC
Guide
|
82128-TA5-A01ZC |
— | ||
|
5
|
5
82128-TA5-A01ZA
Guide
|
82128-TA5-A01ZA |
— | ||
|
6
|
6
82131-TE0-A41ZB
Cover
|
82131-TE0-A41ZB |
— | ||
|
6
|
6
82131-TE0-A41ZA
Cover
|
82131-TE0-A41ZA |
— | ||
|
7
|
7
82137-TE0-A01
Pad & frame comp.
|
82137-TE0-A01 |
— | ||
|
8
|
8
82138-SNA-003 ClipRR. SEAT CUSHION |
82138-SNA-003 |
US $3.36 |
||
|
9
|
9
82140-TE0-A41ZB
Headrest assy
|
82140-TE0-A41ZB |
— | ||
|
9
|
9
82140-TE0-A41ZA
Headrest assy
|
82140-TE0-A41ZA |
— | ||
|
10
|
10
82143-SDA-A01ZL GuideHEADREST FREE *YR327L* |
82143-SDA-A01ZL |
US $6.02 |
||
|
10
|
10
82143-SDA-A01ZA GuideHEADREST FREE *NH167L* |
82143-SDA-A01ZA |
from US $6.02 |
||
|
11
|
11
82144-SDA-A01ZL Guide compHEADREST LOCK *YR327L* |
82144-SDA-A01ZL |
US $7.42 |
||
|
11
|
11
82144-SDA-A01ZA Guide compHEADREST LOCK *NH167L* |
82144-SDA-A01ZA |
US $7.42 |
||
|
12
|
12
82290-TE0-A01
Bracket comp.
|
82290-TE0-A01 |
— | ||
|
13
|
13
82620-TA0-013 Lock assyL. RR. SEAT |
82620-TA0-013 |
US $36.61 |
||
|
14
|
14
82621-TE0-013
Cable
|
82621-TE0-013 |
— | ||
|
15
|
15
82690-TE0-A01
Bracket comp.
|
82690-TE0-A01 |
— | ||
|
16
|
16
82940-TE0-A41ZA
Headrest assy
|
82940-TE0-A41ZA |
— | ||
|
16
|
16
82940-TE0-A41ZB
Headrest assy
|
82940-TE0-A41ZB |
— | ||
|
17
|
17
90123-SJA-000 Bolt-washer6X16 |
90123-SJA-000 |
US $1.05 |
||
|
18
|
18
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
19
|
19
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
20
|
20
93903-45380 ScrewTAPPING, 5X16 |
93903-45380 |
from US $0.37 |
||
|
21
|
21
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
