	Description	OEM Part #	Price
1	1 30202-RYE-003 Collar CLUTCH STOP	30202-RYE-003	US $3.78
2	2 31200-R70-A51 Motor assy. STARTER (DU4V3) (DENSO)	31200-R70-A51	US $830.72
3	3 31202-RYE-A01 Endframe comp. COMMUTATOR	31202-RYE-A01	US $21.25
4	4 31203-RYE-A01 Lever PINION DRIVE	31203-RYE-A01	US $14.72
5	5 31205-RYE-A01 Yoke comp.	31205-RYE-A01	—
6	6 31206-RYE-A01 Armature comp.	31206-RYE-A01	US $300.80
7	7 31207-RYE-A01 Clutch comp. OVERRUNNING	31207-RYE-A01	US $171.52
8	8 31208-RYE-A01 Screw PAN, 4MM	31208-RYE-A01	US $1.19
9	9 31213-RYE-A01 Shaft	31213-RYE-A01	—
10	10 31214-RYE-A01 Gear INTERNAL	31214-RYE-A01	US $28.42
11	11 31215-RYE-A01 Gear comp PLANETARY	31215-RYE-A01	US $14.72
12	12 31216-RYE-A01 Absorber comp SHOCK	31216-RYE-A01	from US $9.24
13	13 31217-RYE-A01 Plate SEAL	31217-RYE-A01	US $3.08
14	14 31218-P3F-003 Washer a	31218-P3F-003	—
15	15 31218-RYE-A01 Washer a	31218-RYE-A01	—
16	16 31219-RYE-A01 Washer b	31219-RYE-A01	—
17	17 31220-PH9-004 Nut HEX., 8MM	31220-PH9-004	from US $1.40
18	18 31223-RYE-A01 Nut	31223-RYE-A01	from US $1.19
19	19 31224-RYE-A01 Insulator	31224-RYE-A01	US $12.18
20	20 31225-RYE-A01 Plate comp BRUSH HOLDER	31225-RYE-A01	from US $28.42
21	21 31226-RYE-A01 Bolt THROUGH	31226-RYE-A01	US $1.68
22	22 31227-RYE-A01 Cover	31227-RYE-A01	US $12.18
23	23 31228-RYE-A01 Ring SNAP	31228-RYE-A01	US $1.89
24	24 31231-RYE-A01 Seal LEVER	31231-RYE-A01	US $6.72
25	25 31270-RJA-A01 Gasket STARTER MOTOR	31270-RJA-A01	US $12.86
26	26 31295-RYE-A01 Shaft set	31295-RYE-A01	—
27	27 31296-R70-A51 Terminal set	31296-R70-A51	—
28	28 94510-18000 Circlip EXTERNAL, 18MM	94510-18000	from US $0.45

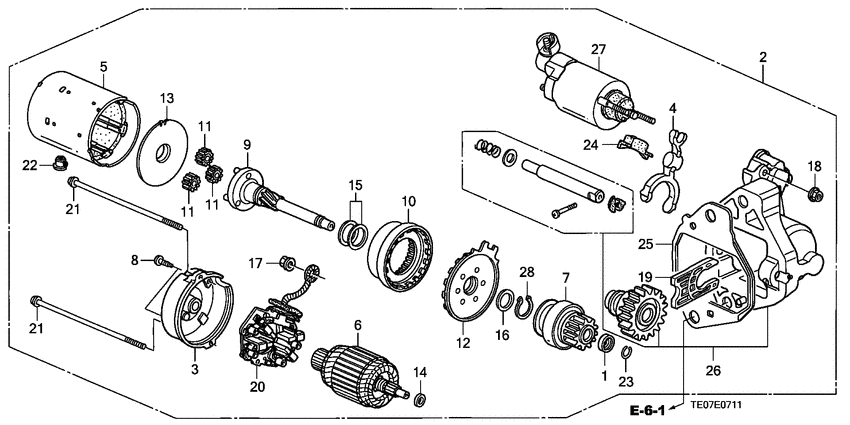

Starter motor (DENSO; V6) Diagram Honda ACCORD General 7062996-545621

Starter motor (DENSO; V6) Diagram Honda ACCORD General 7062996-545621
