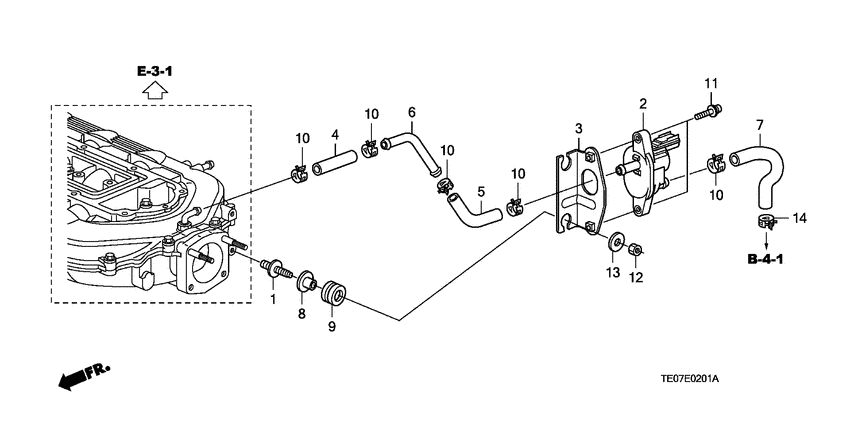

Tubing (V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12315-PLC-000 BoltSTUD |
12315-PLC-000 |
US $1.89 |
||
|
2
|
2
36162-RMX-A01 Valve assy.PURGE CONTROL SOLENOID |
36162-RMX-A01 |
from US $121.18 |
||
|
3
|
3
36163-R70-A00
Stay comp
|
36163-R70-A00 |
— | ||
|
4
|
4
36167-RDV-J00
Tube a
|
36167-RDV-J00 |
— | ||
|
5
|
5
36168-R70-A00
Tube c
|
36168-R70-A00 |
— | ||
|
6
|
6
36169-R70-A00 PipePURGE |
36169-R70-A00 |
US $5.04 |
||
|
7
|
7
36176-R70-A10
Tube b
|
36176-R70-A10 |
— | ||
|
8
|
8
36641-PHM-A00 Collar |
36641-PHM-A00 |
US $1.96 |
||
|
9
|
9
37978-PHM-A00 RubberMOUNT |
37978-PHM-A00 |
US $2.59 |
||
|
10
|
10
91406-SAA-000 ClampTUBE (D12) |
91406-SAA-000 |
US $1.19 |
||
|
11
|
11
93891-050-200-8 Screw-washer5X20 |
93891-050-200-8 |
from US $0.44 |
||
|
12
|
12
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
13
|
13
94103-06800 WasherPLAIN, 6MM |
94103-06800 |
from US $0.37 |
||
|
14
|
14
91406-SAA-J00 ClampTUBE (D12) |
91406-SAA-J00 |
US $1.19 |
