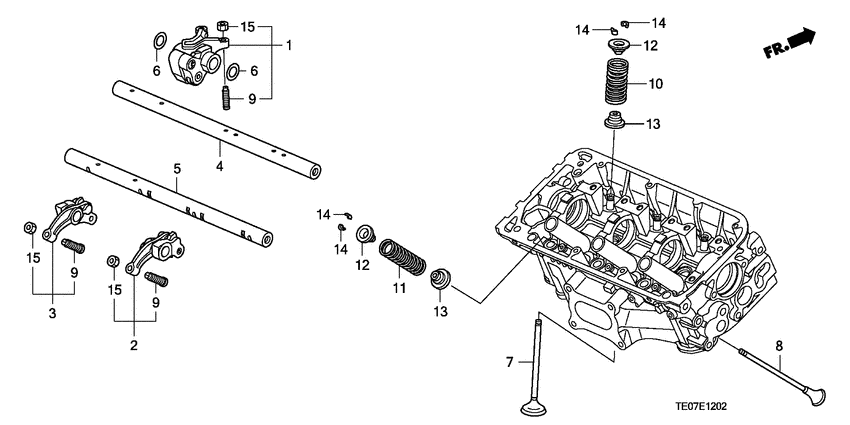

Valve/rocker arm (REAR; V6) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- J35Z
- transmission
- 5AT
- Number of doors
- 2
- grade
- V6 EXG
- area code
- KY
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14620-R70-A01 Arm assy.INTAKE ROCKER |
14620-R70-A01 |
US $166.40 |
||
|
2
|
2
14624-R70-A01 Arm assy. aEX. ROCKER |
14624-R70-A01 |
US $99.84 |
||
|
3
|
3
14627-R70-A01 Arm assy. bEX. ROCKER |
14627-R70-A01 |
US $110.72 |
||
|
4
|
4
14633-R70-A01
Shaft comp.
|
14633-R70-A01 |
— | ||
|
5
|
5
14634-R70-A01
Shaft comp.
|
14634-R70-A01 |
— | ||
|
6
|
6
14646-R70-A00 WasherTHRUST |
14646-R70-A00 |
US $7.02 |
||
|
7
|
7
14711-RYE-A00 ValveIN. |
14711-RYE-A00 |
US $24.71 |
||
|
8
|
8
14721-P8E-A00 ValveEX. |
14721-P8E-A00 |
from US $29.85 |
||
|
9
|
9
14744-R72-A01 ScrewTAPPET ADJUSTING |
14744-R72-A01 |
US $2.87 |
||
|
10
|
10
14761-R70-A01
Spring
|
14761-R70-A01 |
— | ||
|
11
|
11
14762-R70-A01 SpringEX. VALVE (GREEN) (NIPPON HATSUJO) |
14762-R70-A01 |
US $12.78 |
||
|
12
|
12
14765-RDV-J00 RetainerVALVE SPRING |
14765-RDV-J00 |
from US $2.17 |
||
|
13
|
13
14775-PM3-000 SeatVALVE SPRING |
14775-PM3-000 |
from US $2.29 |
||
|
14
|
14
14781-RGM-A01 CotterVALVE (FUJI VALVE) |
14781-RGM-A01 |
from US $2.89 |
||
|
15
|
15
90206-PT0-004 NutTAPPET ADJUSTING |
90206-PT0-004 |
from US $1.18 |
