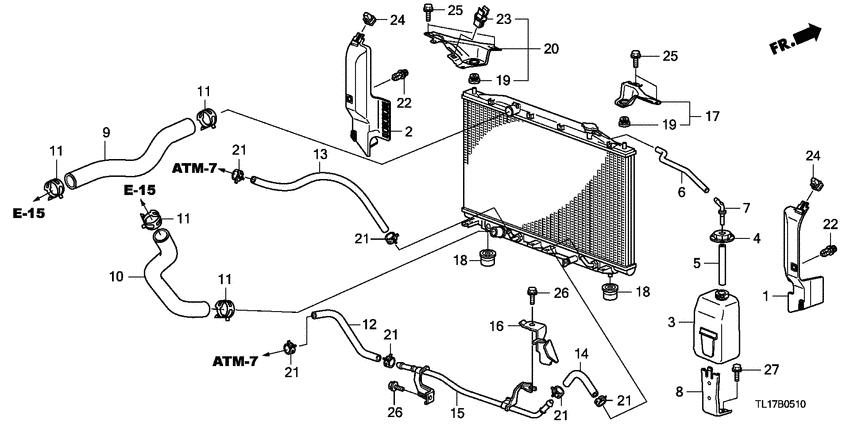

Radiator hose/reserve tan k (2.0L) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- R20A
- transmission
- 6MT
- Number of doors
- 4
- grade
- 2.0 EXECUTIVE
- area code
- KG
- left-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19025-RL2-G00 SealR. RADIATOR SIDE |
19025-RL2-G00 |
US $6.58 |
||
|
2
|
2
19026-RL2-G00 SealL. RADIATOR SIDE |
19026-RL2-G00 |
US $7.14 |
||
|
3
|
3
19101-RL2-G00 TankRESERVE |
19101-RL2-G00 |
US $70.79 |
||
|
4
|
4
19102-PM5-A00 CapRESERVE TANK |
19102-PM5-A00 |
from US $0.95 |
||
|
5
|
5
19103-RL2-G00 HoseRESERVE TANK |
19103-RL2-G00 |
US $4.14 |
||
|
6
|
6
19104-RL2-G00 TubeRESERVE TANK |
19104-RL2-G00 |
US $10.74 |
||
|
7
|
7
19106-RSA-G00 JointRESERVE TANK |
19106-RSA-G00 |
from US $1.39 |
||
|
8
|
8
19115-RL2-G00 BracketRESERVE TANK |
19115-RL2-G00 |
US $5.46 |
||
|
9
|
9
19501-RL2-G01 HoseWATER UPPER |
19501-RL2-G01 |
US $41.59 |
||
|
10
|
10
19502-RL2-G01 HoseWATER LOWER |
19502-RL2-G01 |
US $55.50 |
||
|
11
|
11
19511-PT0-004
Clip
|
19511-PT0-004 |
— | ||
| replacement | |||||
|
11
|
11
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $4.52 |
||
|
17
|
17
74171-TL1-G00 BracketR. RADIATOR UPPER MOUNTING |
74171-TL1-G00 |
from US $14.81 |
||
|
18
|
18
74172-SM4-970 CushionRADIATOR MOUNTING LOWER |
74172-SM4-970 |
US $7.70 |
||
|
19
|
19
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.74 |
||
|
20
|
20
74176-TL1-G00 BracketL. RADIATOR UPPER MOUNTING |
74176-TL1-G00 |
US $17.80 |
||
|
22
|
22
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $2.09 |
||
|
23
|
23
91503-TL0-003 HolderROD(BLACK) |
91503-TL0-003 |
from US $2.73 |
||
|
24
|
24
91512-SND-003 ClipTRUNK SPOILER |
91512-SND-003 |
US $3.22 |
||
|
25
|
25
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.65 |
||
|
27
|
27
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.52 |
||
