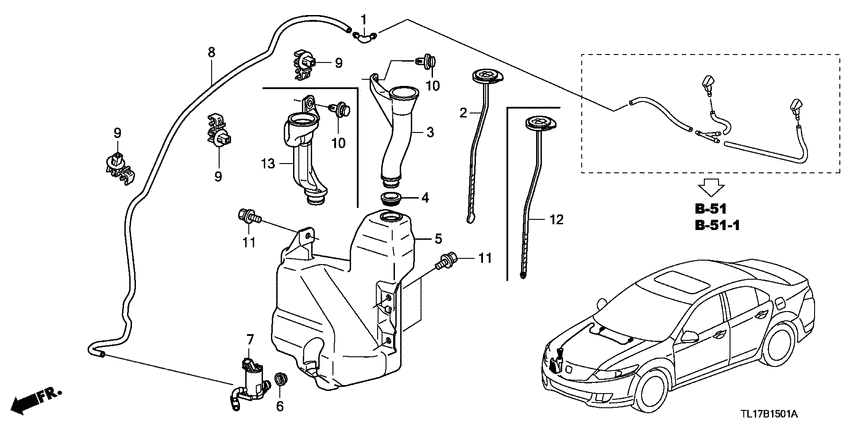

Windshield washer (2) Diagram Honda ACCORD
- Year
- 2009
- Model code
- ACCORD
- Sales region
- General
- Engine
- K24Z
- transmission
- 5AT
- Number of doors
- 4
- grade
- 2.4 EX
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38562-SA0-003 Joint lWASHER TUBE(MITSUBA) |
38562-SA0-003 |
US $3.83 |
||
|
2
|
2
76802-SEF-S01 Cap unitMOUTH |
76802-SEF-S01 |
from US $4.40 |
||
|
3
|
3
76805-TL0-G01
Hose
|
76805-TL0-G01 |
— | ||
|
4
|
4
76809-SE0-003 GrommetWASHER TANK |
76809-SE0-003 |
US $2.65 |
||
|
5
|
5
76841-TA0-U01
Tank
|
76841-TA0-U01 |
— | ||
|
6
|
6
76842-S2K-J11 BushWASHER TANK |
76842-S2K-J11 |
from US $2.38 |
||
|
7
|
7
76846-TA0-A01
Pump set
|
76846-TA0-A01 |
— | ||
|
8
|
8
76864-TL0-G01 Tube1280MM |
76864-TL0-G01 |
US $7.34 |
||
|
9
|
9
91511-TA0-A01 ClipWASHER TUBE & OPEN WIRE |
91511-TA0-A01 |
US $1.75 |
||
|
10
|
10
91512-SX0-003 ClipINNER FENDER CLIP |
91512-SX0-003 |
from US $1.49 |
||
|
11
|
11
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
