	Description	OEM Part #	Price
3	3 33136-TA0-003 Sensor assy HEADLIGHT ADJUSTER FR.	33136-TA0-003	US $166.40
4	4 33137-TL0-E01 Leveling unit AUTO	33137-TL0-E01	US $190.72
5	5 33143-S1A-G01 Nut SPECIAL, 6MM	33143-S1A-G01	US $1.61
6	6 33146-TA0-003 Sensor assy HEADLIGHT ADJUSTER RR.	33146-TA0-003	US $183.04
7	7 33147-TA0-000 Bracket RR. LEVELING SENSOR	33147-TA0-000	US $5.04
8	8 37110-TC0-F01 Siren assy.	37110-TC0-F01	—
10	10 38141-TL0-G00 Bracket RELAY BLOCK	38141-TL0-G00	US $1.33
11	11 38200-TL4-E61 Box assy DRIVER FUSE	38200-TL4-E61	US $496.64
12	12 38210-TL4-E21 Box assy PASSENGER FUSE	38210-TL4-E21	US $439.04
13	13 38211-SNA-A11 Fuse BLOCK (30A)	38211-SNA-A11	from US $3.08
14	14 38221-SNA-A31 Fuse BLADE(7.5A)	38221-SNA-A31	from US $2.31
15	15 38221-SNA-A41 Fuse BLADE(10A)	38221-SNA-A41	from US $2.31
16	16 38221-SNA-A51 Fuse BLADE(15A)	38221-SNA-A51	from US $2.31
17	17 38221-SNA-A61 Fuse BLADE(20A)	38221-SNA-A61	from US $2.31
18	18 38253-TL4-G00 Bracket SECURITY HORN	38253-TL4-G00	US $2.59
19	19 38970-TL0-G01 Sensor assy RAIN & LIGHT	38970-TL0-G01	US $176.64
21	21 38980-TL0-E01 Cover RAIN SENSOR	38980-TL0-E01	US $34.82
22	22 39113-TL0-G01 Adapter unit USB(H-TYPE)	39113-TL0-G01	US $341.76
23	23 39770-TL0-G01 Hft unit BLUETOOTH	39770-TL0-G01	US $1,448.40
24	24 39794-SDA-A05 Relay assy POWER(MICRO ISO) (MITSUBA)	39794-SDA-A05	from US $16.18
24	24 39794-SDA-A02 Relay assy POWER(MICRO ISO) (DENSO)	39794-SDA-A02	US $19.45
25	25 39794-SDA-A05 Relay assy POWER(MICRO ISO) (MITSUBA)	39794-SDA-A05	from US $16.18
25	25 39794-SDA-A02 Relay assy POWER(MICRO ISO) (DENSO)	39794-SDA-A02	US $19.45
26	26 39794-SDA-A02 Relay assy POWER(MICRO ISO) (DENSO)	39794-SDA-A02	US $19.45
26	26 39794-SDA-A05 Relay assy POWER(MICRO ISO) (MITSUBA)	39794-SDA-A05	from US $16.18
27	27 39794-SDA-A05 Relay assy POWER(MICRO ISO) (MITSUBA)	39794-SDA-A05	from US $16.18
27	27 39794-SDA-A02 Relay assy POWER(MICRO ISO) (DENSO)	39794-SDA-A02	US $19.45
28	28 39794-S10-003 Relay assy POWER(5P) (MICRO ISO)(MITSUBA)	39794-S10-003	US $19.45
30	30 39961-TL0-000 Bracket YAW & G SENSOR	39961-TL0-000	US $5.04
31	31 39970-TL0-G01 Sensor YAW & G	39970-TL0-G01	US $680.96
32	32 39980-TL0-E41 Eps unit	39980-TL0-E41	US $696.32
33	33 74940-SED-901 Buzzer assy.	74940-SED-901	US $38.02
34	34 74970-TL4-G31 Control unit POWER TAILGATE	74970-TL4-G31	US $474.88
38	38 90148-SE0-003 Bolt EARTH, 6X16 (WASHER 12.5MM) (ZN)	90148-SE0-003	from US $2.37
39	39 90150-S84-003 Bolt EARTH, 8X16	90150-S84-003	US $1.88
40	40 90361-SV4-003 Nut PAINT CUTTING, 6MM	90361-SV4-003	US $1.47
41	41 90666-TA0-A01 Clip SNAP FITTING (PO) (ORANGE)	90666-TA0-A01	US $1.33
42	42 91533-STK-003 Clip COUPLER(NATURAL)	91533-STK-003	from US $3.08
43	43 91534-S03-003 Clip COUPLER (NATURAL) (SEAL)	91534-S03-003	US $1.33
45	45 93401-080-120-8 Bolt-washer 8X12	93401-080-120-8	from US $0.67
46	46 93403-060-120-4 Bolt-washer 6X12	93403-060-120-4	US $0.59
47	47 93403-060-160-8 Bolt-washer 6X16	93403-060-160-8	from US $0.59
48	48 93403-080-160-4 Bolt-washer 8X16	93403-080-160-4	US $0.74
49	49 93405-060-200-8 Bolt-washer 6X20	93405-060-200-8	from US $0.59
50	50 94050-06080 Nut FLANGE, 6MM	94050-06080	from US $0.52
51	51 95701-060-120-8 Bolt FLANGE, 6X12	95701-060-120-8	from US $0.52
52	52 95701-060-160-8 Bolt FLANGE, 6X16	95701-060-160-8	from US $0.38
53	53 39794-SDA-A02 Relay assy POWER(MICRO ISO) (DENSO)	39794-SDA-A02	US $19.45
53	53 39794-SDA-A05 Relay assy POWER(MICRO ISO) (MITSUBA)	39794-SDA-A05	from US $16.18
54	54 93403-060-120-4 Bolt-washer 6X12	93403-060-120-4	US $0.59
55	55 93405-060-200-0 Bolt-washer 6X20	93405-060-200-0	from US $0.59

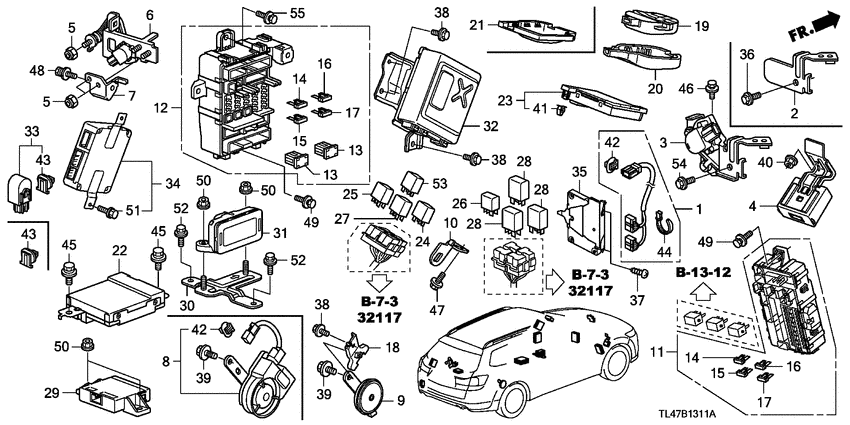

Control unit (CABIN; 1; RH) Diagram Honda ACCORD General 7064913-546765

Control unit (CABIN; 1; RH) Diagram Honda ACCORD General 7064913-546765
