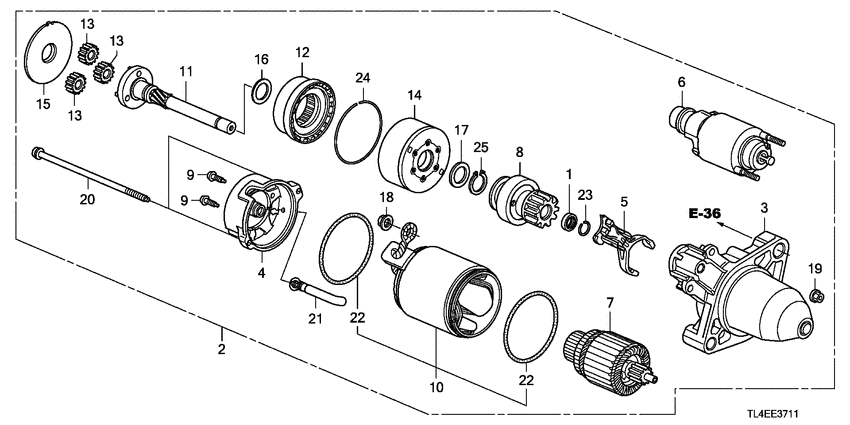

Starter motor (DENSO; DIESEL; AT) Diagram Honda ACCORD
- Year
- 2011
- Model code
- ACCORD TOURER
- Sales region
- General
- Engine
- N22B
- transmission
- 5AT
- Number of doors
- 5
- grade
- 2.2 ES-GT
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
30202-RL0-G51 CollarCLUTCH STOP |
30202-RL0-G51 |
US $3.78 |
||
2
|
2
31200-RL0-G51 Motor assy.STARTER(DY4J5) (DENSO) |
31200-RL0-G51 |
US $755.20 |
||
3
|
3
31201-RL0-G51 Housing compDRIVE SIDE |
31201-RL0-G51 |
US $53.63 |
||
4
|
4
31202-RL0-G51 Endframe comp.COMMUTATOR |
31202-RL0-G51 |
US $19.33 |
||
5
|
5
31203-RL0-G51 LeverPINION DRIVE |
31203-RL0-G51 |
US $14.72 |
||
6
|
6
31204-RL0-G01
Switch assy
|
31204-RL0-G01 |
— | ||
7
|
7
31206-RL0-G51 Armature comp. |
31206-RL0-G51 |
US $199.68 |
||
8
|
8
31207-RL0-G51 Clutch comp.OVERRUNNING |
31207-RL0-G51 |
US $92.16 |
||
9
|
9
31208-RL0-G51 ScrewPAN(M5) |
31208-RL0-G51 |
US $1.19 |
||
10
|
10
31210-RL0-G51
Yoke comp.
|
31210-RL0-G51 |
— | ||
11
|
11
31213-RL0-G51
Shaft
|
31213-RL0-G51 |
— | ||
12
|
12
31214-RL0-G51 GearINTERNAL |
31214-RL0-G51 |
US $28.42 |
||
13
|
13
31215-RL0-G51 Gear compPLANETARY |
31215-RL0-G51 |
US $14.72 |
||
14
|
14
31216-RL0-G51 Absorber compSHOCK |
31216-RL0-G51 |
US $9.24 |
||
15
|
15
31217-RL0-G51 PlateSEAL |
31217-RL0-G51 |
US $3.08 |
||
16
|
16
31218-RL0-G51
Washer a
|
31218-RL0-G51 |
— | ||
17
|
17
31219-RL0-G51
Washer b
|
31219-RL0-G51 |
— | ||
18
|
18
31220-RL0-G51 Nut |
31220-RL0-G51 |
US $1.40 |
||
19
|
19
31223-RYE-A01 Nut |
31223-RYE-A01 |
from US $1.19 |
||
20
|
20
31226-RL0-G51 BoltTHROUGH |
31226-RL0-G51 |
US $1.68 |
||
21
|
21
31227-RL0-G51 Cover |
31227-RL0-G51 |
US $11.90 |
||
22
|
22
31228-PC2-661 O-ringYOKE BODY |
31228-PC2-661 |
US $2.45 |
||
23
|
23
31228-RL0-G51 RingSNAP |
31228-RL0-G51 |
US $1.89 |
||
24
|
24
31229-RL0-G51
Spring
|
31229-RL0-G51 |
— | ||
25
|
25
94510-18000 CirclipEXTERNAL, 18MM |
94510-18000 |
from US $0.45 |
