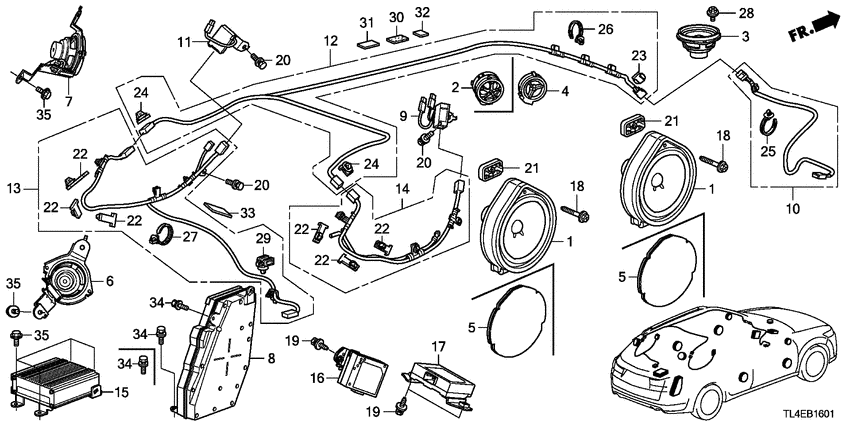

Radio antenna/speaker (RH) Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD TOURER
- Sales region
- General
- Engine
- N22B
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2 ES-GT
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39120-TL0-G01
Speaker assy
|
39120-TL0-G01 |
— | ||
|
2
|
2
39120-TL0-G11
Speaker assy
|
39120-TL0-G11 |
— | ||
|
3
|
3
39120-TL0-G31
Speaker assy
|
39120-TL0-G31 |
— | ||
|
6
|
6
39125-TL4-G01
Speaker assy
|
39125-TL4-G01 |
— | ||
|
7
|
7
39125-TL4-G11
Speaker assy
|
39125-TL4-G11 |
— | ||
|
8
|
8
39140-TL4-G01
Speaker assy
|
39140-TL4-G01 |
— | ||
|
9
|
9
39155-TL4-G01 Module unitMAIN ANTENNA |
39155-TL4-G01 |
US $67.84 |
||
|
10
|
10
39156-TL0-G51
Sub feeder
|
39156-TL0-G51 |
— | ||
|
11
|
11
39157-TL4-G01 Module unitSUB ANTENNA |
39157-TL4-G01 |
US $80.04 |
||
|
12
|
12
39160-TL4-E01 Feeder assy.ANTENNA |
39160-TL4-E01 |
US $55.55 |
||
|
13
|
13
39167-TL4-G01 Feeder assy.RDS |
39167-TL4-G01 |
US $42.37 |
||
|
14
|
14
39168-TL4-G01 Feeder assy.SUB ANTENNA (INCLUDE WASHER TUBE) |
39168-TL4-G01 |
US $27.14 |
||
|
15
|
15
39186-TL4-G01 Amplifier assyPREMIUM AUDIO |
39186-TL4-G01 |
US $953.60 |
||
|
18
|
18
90109-SLJ-003 Screw5X40 |
90109-SLJ-003 |
US $1.61 |
||
|
20
|
20
90148-SE0-003 BoltEARTH, 6X16 (WASHER 12.5MM) (ZN) |
90148-SE0-003 |
from US $2.37 |
||
|
21
|
21
90309-SLJ-003 Nut assy.SPEAKER |
90309-SLJ-003 |
US $3.78 |
||
|
22
|
22
91531-S04-003 ClipWIRE HARNESS(NATURAL) (44MM) |
91531-S04-003 |
from US $1.33 |
||
|
23
|
23
91533-STK-003 ClipCOUPLER(NATURAL) |
91533-STK-003 |
from US $3.08 |
||
|
24
|
24
91534-SWA-003 ClipCOUPLER(DARK GRAY) |
91534-SWA-003 |
from US $3.08 |
||
|
25
|
25
91540-STK-003 ClipHARNESS BAND (BLACK) (155.3MM) |
91540-STK-003 |
from US $3.11 |
||
|
26
|
26
91540-S7S-003 ClipHARNESS BAND(BLACK) (157.7MM) |
91540-S7S-003 |
from US $2.72 |
||
|
27
|
27
91542-SNA-003 ClipHARNESS BAND(DARK BLUE) (164.5MM) |
91542-SNA-003 |
from US $0.73 |
||
|
28
|
28
91551-SE0-003 BoltFLANGE, 5X7 |
91551-SE0-003 |
US $0.84 |
||
|
29
|
29
91571-S10-003 ClipWIRE HARNESS (NATURAL) (130MM) |
91571-S10-003 |
US $1.89 |
||
|
31
|
31
91902-S2X-003 PlasterWIRE HARNESS(50X100) |
91902-S2X-003 |
US $1.61 |
||
|
32
|
32
91902-S3N-003 PlasterWIRE HARNESS (50X50) |
91902-S3N-003 |
US $1.19 |
||
|
33
|
33
91903-SNA-003 PlasterWIRE HARNESS(50X100) |
91903-SNA-003 |
US $1.61 |
||
|
34
|
34
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.65 |
||
|
35
|
35
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.56 |
