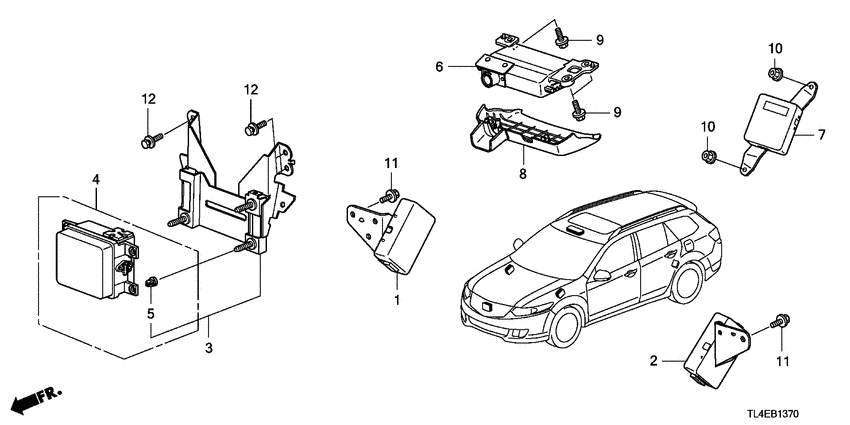

Radar/lkas Diagram Honda ACCORD
- Year
- 2010
- Model code
- ACCORD TOURER
- Sales region
- General
- Engine
- N22B
- transmission
- 6MT
- Number of doors
- 5
- grade
- 2.2 EXECUTIVE
- area code
- KG
- left-hand drive
- +
- lane keeping assist system
- +
- acc
- +
- power tailgate
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
36700-TL0-G02 Acc unitREWRITABLE |
36700-TL0-G02 |
US $1,199.36 |
||
|
3
|
3
36801-TL0-G01 Bracket assy |
36801-TL0-G01 |
US $209.92 |
||
|
4
|
4
36802-TL0-G02
Radar sub assy.
|
36802-TL0-G02 |
— | ||
|
5
|
5
36803-SFY-003 Grip |
36803-SFY-003 |
US $7.56 |
||
|
6
|
6
36870-TL0-G01 Camera assyLKAS |
36870-TL0-G01 |
US $3,073.28 |
||
|
7
|
7
36880-TL4-G01 Lkas unit |
36880-TL4-G01 |
US $825.60 |
||
|
8
|
8
36950-TL0-G00ZA CoverLKAS CAMERA *NH556L* |
36950-TL0-G00ZA |
US $48.26 |
||
|
9
|
9
90148-S6A-013 BoltEARTH, 5X14 |
90148-S6A-013 |
US $1.19 |
||
|
10
|
10
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
11
|
11
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
12
|
12
93404-060-120-4 Bolt-washer6X12 |
93404-060-120-4 |
US $0.52 |
