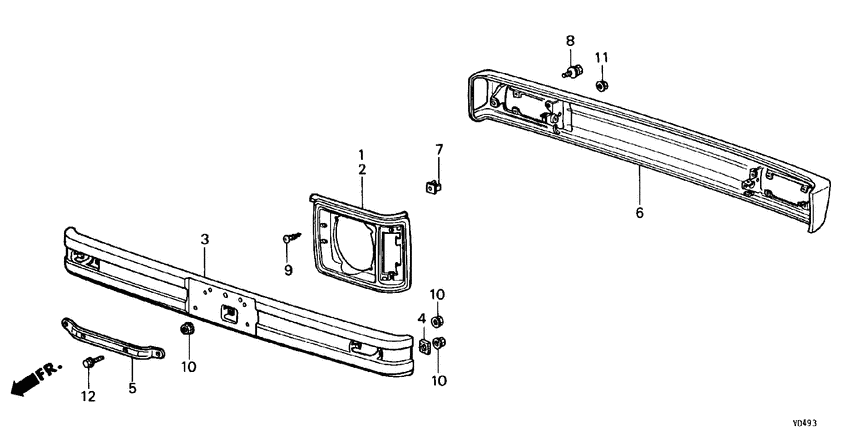

Bumper/headlight garnish ('83-'85) Diagram Honda ACTY
- Year
- 1983
- Model code
- ACTY VAN
- Sales region
- General
- Engine
- EH
- transmission
- 4MT
- Number of doors
- 5
- grade
- DX
- area code
- KD
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62412-679-020
Garnish
|
62412-679-020 |
— | ||
|
2
|
2
62422-679-020
Garnish
|
62422-679-020 |
— | ||
|
3
|
3
62500-679-683
Bumper comp.
|
62500-679-683 |
— | ||
|
4
|
4
62517-679-000
Packing
|
62517-679-000 |
— | ||
|
5
|
5
62519-671-621
Bracket
|
62519-671-621 |
— | ||
|
6
|
6
84100-680-010 Bumper comp.RR. |
84100-680-010 |
US $312.32 |
||
|
7
|
7
90681-679-003
Grommet
|
90681-679-003 |
— | ||
|
8
|
8
93493-060-160-8 Bolt-washer6X16 |
93493-060-160-8 |
from US $0.59 |
||
| replacement | |||||
|
8
|
8
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
9
|
9
93903-443G0 ScrewTAPPING, 4X12 0S008358 - |
93903-443G0 |
US $0.74 |
||
|
9
|
9
93903-34380 ScrewTAPPING, 4X12 00000000 - 0S008357 |
93903-34380 |
from US $0.41 |
||
|
10
|
10
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
11
|
11
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
||
|
12
|
12
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
12
|
12
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
