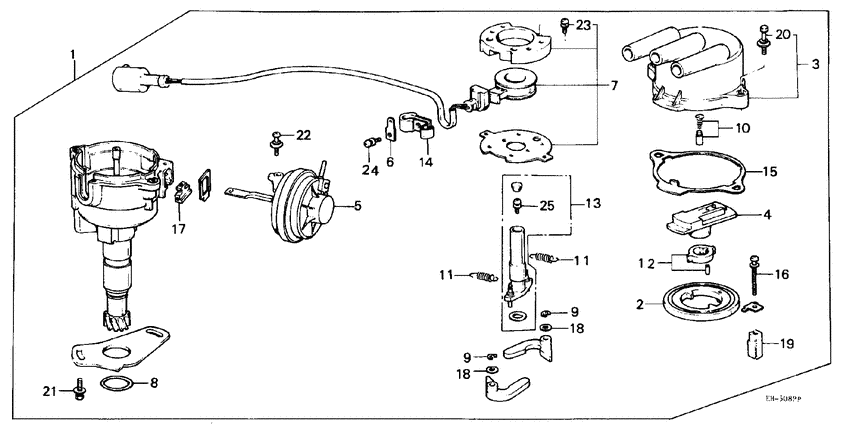

Distributor (1) Diagram Honda ACTY
- Year
- 1983
- Model code
- ACTY VAN
- Sales region
- General
- Engine
- EH
- transmission
- 4MT
- Number of doors
- 5
- grade
- DX
- area code
- KD
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30100-679-682
Distributor assy
|
30100-679-682 |
— | ||
|
2
|
2
30101-679-006
Base
|
30101-679-006 |
— | ||
|
3
|
3
30102-679-006
Cap assy.
|
30102-679-006 |
— | ||
|
4
|
4
30103-PA1-732 HeadROTOR |
30103-PA1-732 |
US $9.80 |
||
|
5
|
5
30104-679-622
Control assy.
|
30104-679-622 |
— | ||
|
6
|
6
30107-PA1-732
Terminal
|
30107-PA1-732 |
— | ||
|
7
|
7
30108-679-006
Generator assy.
|
30108-679-006 |
— | ||
|
8
|
8
30110-PA1-732 O-ring26.4X3.1 (TEC) |
30110-PA1-732 |
from US $3.13 |
||
|
9
|
9
30111-PA1-733
E-ring
|
30111-PA1-733 |
— | ||
|
10
|
10
30115-PA1-732
Point set
|
30115-PA1-732 |
— | ||
|
11
|
11
30116-679-006
Spring
|
30116-679-006 |
— | ||
|
12
|
12
30126-679-006
Rotor set
|
30126-679-006 |
— | ||
|
13
|
13
30127-679-006
Shaft set
|
30127-679-006 |
— | ||
|
14
|
14
30128-PA1-732
Clip
|
30128-PA1-732 |
— | ||
|
15
|
15
30132-PB1-006
Rubber
|
30132-PB1-006 |
— | ||
|
16
|
16
30134-PA6-006
Screw-washer
|
30134-PA6-006 |
— | ||
|
17
|
17
30142-PA6-006
Pipe
|
30142-PA6-006 |
— | ||
|
18
|
18
30146-PA1-732
Washer
|
30146-PA1-732 |
— | ||
|
19
|
19
30167-PB1-006
Collar
|
30167-PB1-006 |
— | ||
|
20
|
20
90048-PC1-004
Bolt-washer
|
90048-PC1-004 |
— | ||
|
21
|
21
90056-PC1-004
Bolt-washer
|
90056-PC1-004 |
— | ||
|
22
|
22
93891-040-141-8 Screw-washer4X14 |
93891-040-141-8 |
US $0.44 |
||
|
23
|
23
93892-040-061-8
Screw-washer
|
93892-040-061-8 |
— | ||
| replacement | |||||
|
23
|
23
93892-040-060-8 Screw-washer4X6 |
93892-040-060-8 |
from US $0.44 |
||
|
24
|
24
93892-040-081-8 Screw-washer4X8 |
93892-040-081-8 |
from US $0.44 |
||
| replacement | |||||
|
24
|
24
93892-040-080-8 Screw-washer4X8 |
93892-040-080-8 |
from US $0.49 |
||
|
25
|
25
93892-040-101-8 Screw-washer4X10 |
93892-040-101-8 |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
93892-040-100-8 Screw-washer4X10 |
93892-040-100-8 |
from US $0.49 |
||
