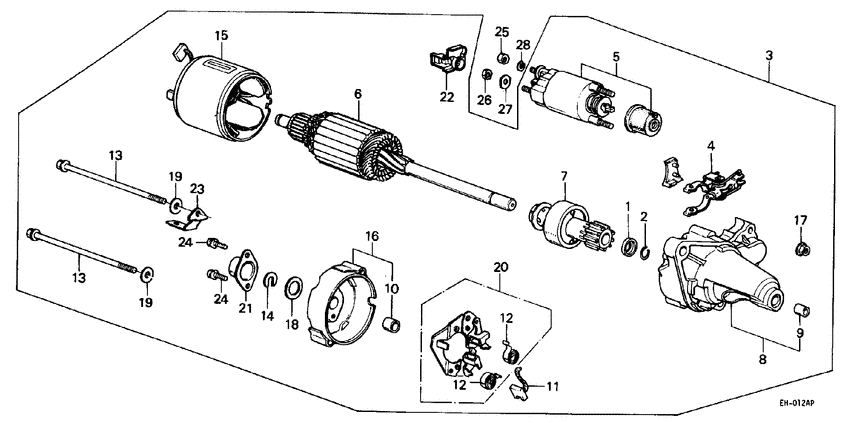

Starter motor (DENSO; 1) Diagram Honda ACTY
- Year
- 1983
- Model code
- ACTY VAN
- Sales region
- General
- Engine
- EH
- transmission
- 4MT
- Number of doors
- 5
- grade
- DX PANEL VAN
- area code
- KE
- right-hand drive
- +
- rear fog light
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30202-679-004 CollarCLUTCH STOP |
30202-679-004 |
US $5.88 |
||
|
2
|
2
30203-679-004
Ring
|
30203-679-004 |
— | ||
|
3
|
3
31200-679-024 Motor assy.STARTER (DD4D5) (DENSO) 00000000 - 2321894 |
31200-679-024 |
US $768 |
||
|
3
|
3
31200-679-034 Motor assy.STARTER (DD4D5) (DENSO) 2321895 - |
31200-679-034 |
US $768 |
||
|
4
|
4
31203-679-004
Lever
|
31203-679-004 |
— | ||
|
5
|
5
31204-PC1-004
Switch assy
00000000 - 2129298 |
31204-PC1-004 |
— | ||
|
5
|
5
31204-PC1-024
Switch assy
2129299 - |
31204-PC1-024 |
— | ||
|
6
|
6
31206-679-014 Armature comp.00000000 - 2108835 |
31206-679-014 |
US $257.28 |
||
|
6
|
6
31206-679-024
Armature comp.
2108836 - |
31206-679-024 |
— | ||
|
7
|
7
31207-679-014
Clutch comp.
2108836 - |
31207-679-014 |
— | ||
|
7
|
7
31207-679-004 Clutch comp.OVERRUNNING 00000000 - 2108835 |
31207-679-004 |
US $167.68 |
||
|
8
|
8
31208-679-004 CaseGEAR |
31208-679-004 |
US $97.92 |
||
|
9
|
9
31209-679-004
BEARING A
|
31209-679-004 |
— | ||
|
10
|
10
31210-679-004
Bearing b
|
31210-679-004 |
— | ||
|
11
|
11
31211-679-014
Brush
|
31211-679-014 |
— | ||
|
12
|
12
31212-679-004
Spring
|
31212-679-004 |
— | ||
|
13
|
13
31214-679-024
Bolt
2189025 - |
31214-679-024 |
— | ||
|
13
|
13
31214-679-014 BoltTHROUGH 00000000 - 2189024 |
31214-679-014 |
US $4.34 |
||
|
14
|
14
31215-679-014
Plate
2108836 - |
31215-679-014 |
— | ||
|
14
|
14
31215-679-004 PlateLOCK 00000000 - 2108835 |
31215-679-004 |
US $2.87 |
||
|
15
|
15
31218-679-014
Yoke comp.
00000000 - 2108835 |
31218-679-014 |
— | ||
|
15
|
15
31218-679-024
Yoke comp.
2108836 - |
31218-679-024 |
— | ||
|
16
|
16
31219-679-004 Frame compCOMMUTATOR END |
31219-679-004 |
US $46.72 |
||
|
17
|
17
31223-PA0-006 NutHEX. |
31223-PA0-006 |
from US $1.19 |
||
|
18
|
18
31224-657-006
Rubber a
2108836 - |
31224-657-006 |
— | ||
|
18
|
18
31224-679-004
Rubber a
00000000 - 2108835 |
31224-679-004 |
— | ||
|
19
|
19
31227-679-004
Washer b
|
31227-679-004 |
— | ||
|
20
|
20
31231-679-014
Holder comp
|
31231-679-014 |
— | ||
|
21
|
21
31232-679-014
Cap
2108836 - |
31232-679-014 |
— | ||
|
21
|
21
31232-679-004 CapEND FRAME 00000000 - 2108835 |
31232-679-004 |
US $3.29 |
||
|
22
|
22
31239-679-004 CoverMAGNETIC SWITCH |
31239-679-004 |
US $4.76 |
||
|
23
|
23
91411-679-014 ClipCORD 2108836 - 2311926 |
91411-679-014 |
US $6.30 |
||
|
23
|
23
91411-679-004 ClipCORD 00000000 - 2108835 |
91411-679-004 |
US $6.30 |
||
|
23
|
23
91411-679-024
Clip
2311927 - |
91411-679-024 |
— | ||
|
24
|
24
93892-040-120-8 Screw-washer4X12 |
93892-040-120-8 |
from US $0.49 |
||
|
25
|
25
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
26
|
26
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
26
|
26
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
27
|
27
94101-08800 WasherPLAIN, 8MM |
94101-08800 |
from US $0.37 |
||
|
28
|
28
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
