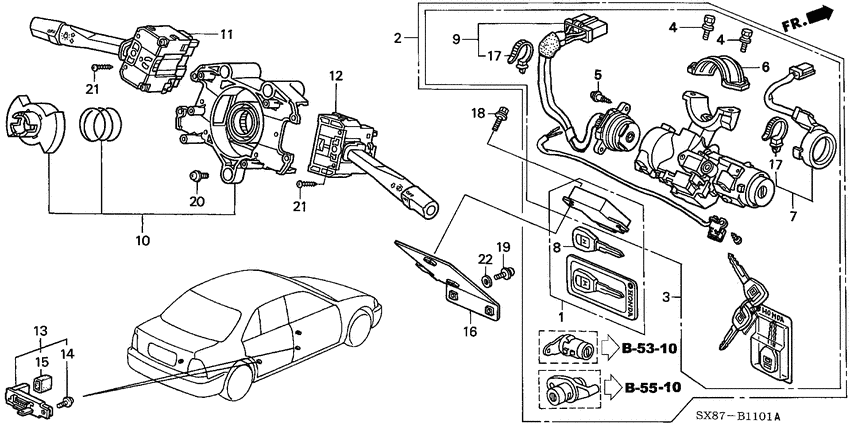

Combination switch (2) Diagram Honda CITY
- Year
- 2002
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 4
- grade
- LXI-S
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04809-SX8-Y02
Key & unit assy.
|
04809-SX8-Y02 |
— | ||
|
2
|
2
06350-SX8-Y90
Cylinder set
|
06350-SX8-Y90 |
— | ||
|
3
|
3
35100-SX8-Y91
Lock assy
|
35100-SX8-Y91 |
— | ||
|
4
|
4
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
5
|
5
35103-S04-003 ScrewRECESSED |
35103-S04-003 |
US $1.61 |
||
|
6
|
6
35108-S04-003 HolderCOLUMN |
35108-S04-003 |
US $2.10 |
||
|
7
|
7
35109-SX8-Y91
Antenna comp.
|
35109-SX8-Y91 |
— | ||
|
8
|
8
35113-S04-G03 KeyBLANK (MAIN) (BLACK) (IMMOBILIZER) |
35113-S04-G03 |
US $56.70 |
||
|
9
|
9
35130-SX8-D81
Switch comp
|
35130-SX8-D81 |
— | ||
|
10
|
10
35251-S04-A82 Body compSWITCH (36MM) |
35251-S04-A82 |
US $41.73 |
||
|
11
|
11
35255-SR3-G02
Switch assy
|
35255-SR3-G02 |
— | ||
|
12
|
12
35256-SX8-G01
Switch assy
|
35256-SX8-G01 |
— | ||
|
13
|
13
35400-692-033
Switch assy
|
35400-692-033 |
— | ||
|
14
|
14
35409-692-013 ScrewFLANGE, 4X12 |
35409-692-013 |
from US $2.09 |
||
|
15
|
15
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
16
|
16
39731-SX8-Y00
Bracket
|
39731-SX8-Y00 |
— | ||
|
17
|
17
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
18
|
18
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
19
|
19
93891-050-140-8 Screw-washer5X14 |
93891-050-140-8 |
from US $0.44 |
||
|
20
|
20
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
21
|
21
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
||
|
22
|
22
94103-05800 WasherPLAIN, 5MM |
94103-05800 |
from US $0.38 |
