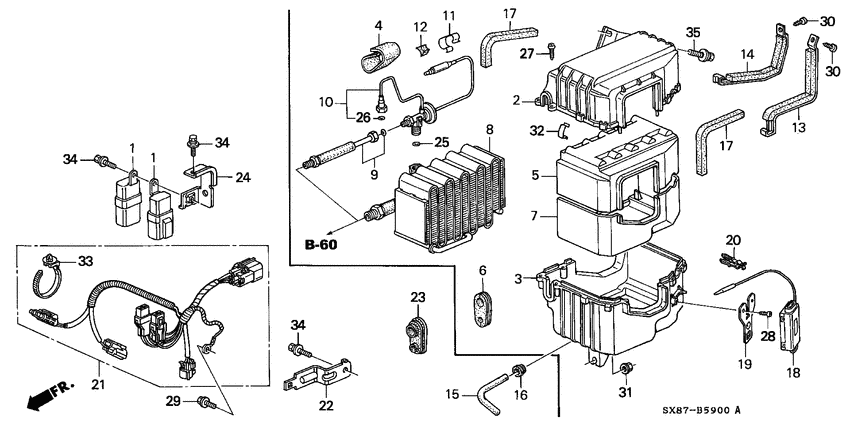

Air conditioner (COOLING UNIT) Diagram Honda CITY
- Year
- 2001
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39795-SH3-K21
Relay assy
|
39795-SH3-K21 |
— | ||
|
2
|
2
80201-SX8-D01
Case
|
80201-SX8-D01 |
— | ||
|
3
|
3
80202-SX8-D01
Case
|
80202-SX8-D01 |
— | ||
|
4
|
4
80205-SH3-K21
Insulator
|
80205-SH3-K21 |
— | ||
|
5
|
5
80205-SX8-D01
Insulator
|
80205-SX8-D01 |
— | ||
|
6
|
6
80206-SH3-K21
Grommet
|
80206-SH3-K21 |
— | ||
|
7
|
7
80206-SX8-D01
Insulator
|
80206-SX8-D01 |
— | ||
|
8
|
8
80215-SX8-F21
Evaporator comp.
|
80215-SX8-F21 |
— | ||
|
9
|
9
80216-SX8-T21
Pipe
|
80216-SX8-T21 |
— | ||
|
10
|
10
80220-SX8-D02
Valve assy.
|
80220-SX8-D02 |
— | ||
|
11
|
11
80225-SR3-K01
Clamp
|
80225-SR3-K01 |
— | ||
|
12
|
12
80226-S04-K01
Spacer
|
80226-S04-K01 |
— | ||
|
13
|
13
80261-SH3-K01
Band a
|
80261-SH3-K01 |
— | ||
|
14
|
14
80265-SH3-K21
Band b
|
80265-SH3-K21 |
— | ||
|
15
|
15
80271-SX8-F21
Hose
|
80271-SX8-F21 |
— | ||
|
16
|
16
80272-SR3-K01
Grommet
|
80272-SR3-K01 |
— | ||
|
17
|
17
80286-SX8-D01
Seal
|
80286-SX8-D01 |
— | ||
|
18
|
18
80430-SX8-D01
Thermostat
|
80430-SX8-D01 |
— | ||
|
19
|
19
80431-SX8-D01
Bracket
|
80431-SX8-D01 |
— | ||
|
20
|
20
80435-SR3-K02 ClipEVAPORATOR SENSOR |
80435-SR3-K02 |
US $20.22 |
||
|
21
|
21
80460-SX8-T21
Harness
|
80460-SX8-T21 |
— | ||
|
22
|
22
80463-SX8-T21
Bracket
|
80463-SX8-T21 |
— | ||
|
23
|
23
80464-SX8-T21
Grommet
|
80464-SX8-T21 |
— | ||
|
24
|
24
80491-SX8-T21
Bracket
|
80491-SX8-T21 |
— | ||
|
25
|
25
80872-SR3-K01 O-ring1/2" |
80872-SR3-K01 |
US $2.31 |
||
|
26
|
26
80874-SR3-K01
O-ring
|
80874-SR3-K01 |
— | ||
|
27
|
27
90122-SX8-D01
Screw
|
90122-SX8-D01 |
— | ||
|
28
|
28
90123-SX8-D01
Screw
|
90123-SX8-D01 |
— | ||
|
29
|
29
90153-SE0-003 BoltEARTH, 6X12 |
90153-SE0-003 |
from US $1.12 |
||
|
30
|
30
90155-SE0-003 ScrewTAPPING, 6X20 |
90155-SE0-003 |
US $1.54 |
||
|
31
|
31
90321-SV4-003 Nut-washer6MM (PAINT CUTTING) |
90321-SV4-003 |
from US $1.47 |
||
|
32
|
32
90659-SH3-K21
Clamp
|
90659-SH3-K21 |
— | ||
|
33
|
33
91558-ST5-003 ClipHARNESS BAND(NATURAL) (135MM)(7MM HOLE) |
91558-ST5-003 |
from US $2.60 |
||
|
34
|
34
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
35
|
35
93404-060-250-8 Bolt-washer6X25 |
93404-060-250-8 |
from US $0.62 |
