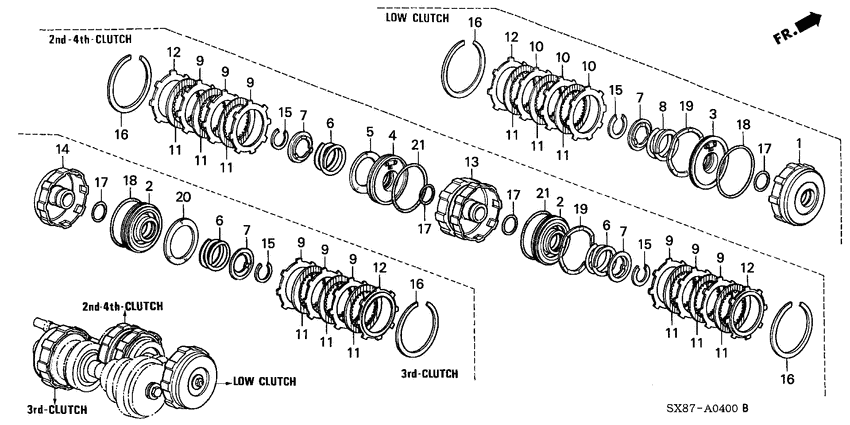

Clutch Diagram Honda CITY
- Year
- 2001
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22510-PL1-000
Guide comp
|
22510-PL1-000 |
— | ||
|
2
|
2
22530-PL4-000 Piston compSECOND CLUTCH |
22530-PL4-000 |
US $41.86 |
||
|
3
|
3
22530-PL4-000 Piston compSECOND CLUTCH |
22530-PL4-000 |
US $41.86 |
||
|
4
|
4
22530-PL4-000 Piston compSECOND CLUTCH |
22530-PL4-000 |
US $41.86 |
||
|
5
|
5
22537-PL4-003
Spring
|
22537-PL4-003 |
— | ||
|
6
|
6
22541-P7C-003
Spring
|
22541-P7C-003 |
— | ||
|
7
|
7
22542-PA9-000 SeatCLUTCH SPRING |
22542-PA9-000 |
from US $2.80 |
||
|
8
|
8
22542-P68-003
Spring
|
22542-P68-003 |
— | ||
|
9
|
9
22543-PA9-000 PlateCLUTCH (106MM) |
22543-PA9-000 |
from US $7.49 |
||
|
10
|
10
22543-PJ4-000 PlateCLUTCH (106MM) |
22543-PJ4-000 |
US $6.86 |
||
|
11
|
11
22544-P4M-911
Disk
|
22544-P4M-911 |
— | ||
|
12
|
12
22563-PA9-010 PlateCLUTCH END (13) (2.75MM) |
22563-PA9-010 |
from US $13.02 |
||
|
12
|
12
22553-PA9-010 PlateCLUTCH END (3) (2.9MM) |
22553-PA9-010 |
from US $13.82 |
||
|
12
|
12
22565-PA9-010 PlateCLUTCH END (15) (3.35MM) |
22565-PA9-010 |
from US $13.02 |
||
|
12
|
12
22555-PA9-010 PlateCLUTCH END (5) (3.5MM) |
22555-PA9-010 |
from US $13.02 |
||
|
12
|
12
22562-PA9-010 PlateCLUTCH END (12) (2.45MM) |
22562-PA9-010 |
from US $13.02 |
||
|
12
|
12
22552-PA9-010 PlateCLUTCH END (2) (2.6MM) |
22552-PA9-010 |
from US $13.02 |
||
|
12
|
12
22564-PA9-010 PlateCLUTCH END (14) (3.05MM) |
22564-PA9-010 |
from US $13.02 |
||
|
12
|
12
22554-PA9-010 PlateCLUTCH END (4) (3.2MM) |
22554-PA9-010 |
from US $13.02 |
||
|
12
|
12
22566-PA9-010 PlateCLUTCH END (16) (3.65MM) |
22566-PA9-010 |
from US $13.02 |
||
|
12
|
12
22561-PA9-010 PlateCLUTCH END (11) (2.15MM) |
22561-PA9-010 |
from US $13.02 |
||
|
12
|
12
22551-PA9-010 PlateCLUTCH END (1) (2.3MM) |
22551-PA9-010 |
from US $14.46 |
||
|
13
|
13
22610-PC9-813 Guide compCLUTCH (2-4) |
22610-PC9-813 |
from US $255.68 |
||
|
14
|
14
22611-PA9-000 GuideSECOND CLUTCH |
22611-PA9-000 |
US $163.84 |
||
|
15
|
15
90603-PA9-000 CirclipEXTERNAL, 40MM |
90603-PA9-000 |
from US $2.80 |
||
|
16
|
16
90605-PA9-000 RingSNAP, 114X1.8 |
90605-PA9-000 |
from US $6.30 |
||
|
17
|
17
91302-PA9-003 O-ring39.8X2.2 (ARAI) |
91302-PA9-003 |
from US $2.37 |
||
|
18
|
18
91303-PA9-004 O-ring100X2.2 (NOK) |
91303-PA9-004 |
from US $5.33 |
||
|
19
|
19
22536-P68-003
Spring
|
22536-P68-003 |
— | ||
|
20
|
20
22537-PA9-013
Spring
|
22537-PA9-013 |
— | ||
|
21
|
21
91303-PA9-003 O-ring100X2.2(ARAI) |
91303-PA9-003 |
US $8.81 |
||
| replacement | |||||
|
21
|
21
91303-PA9-004 O-ring100X2.2 (NOK) |
91303-PA9-004 |
from US $5.33 |
||
|
21
|
21
91303-PA9-004 O-ring100X2.2 (NOK) |
91303-PA9-004 |
from US $5.33 |
||
