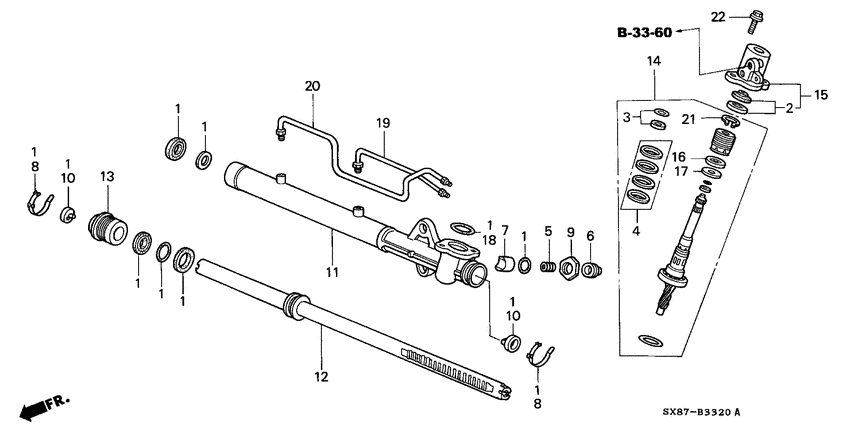

Power steering gear box components Diagram Honda CITY
- Year
- 2001
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06531-S04-J51 Seal kit aPOWER STEERING (ROTARY VALVE) |
06531-S04-J51 |
from US $50.69 |
||
|
2
|
2
06532-S50-003 Oil seal setROTARY VALVE |
06532-S50-003 |
from US $15.56 |
||
|
3
|
3
06534-S84-A01 Ring setPOWER STEERING SEAL (ROTARY VALVE) |
06534-S84-A01 |
from US $6.35 |
||
|
4
|
4
06535-S50-003 Ring setPOWER STEERING SEAL (ROTARY VALVE) |
06535-S50-003 |
from US $7.98 |
||
|
5
|
5
53413-S04-J51
Spring
|
53413-S04-J51 |
— | ||
|
6
|
6
53414-S04-003 ScrewRACK GUIDE |
53414-S04-003 |
US $8.40 |
||
|
7
|
7
53416-S04-J51 GuideSTEERING RACK |
53416-S04-J51 |
from US $14.24 |
||
|
8
|
8
53449-S04-J51 Band bBELLOWS |
53449-S04-J51 |
US $6.67 |
||
|
9
|
9
53458-S04-J51 NutLOCK |
53458-S04-J51 |
US $5.60 |
||
|
10
|
10
53536-S04-J51 WasherTIE ROD LOCK |
53536-S04-J51 |
US $2.52 |
||
|
11
|
11
53608-SX8-F03
Housing sub assy.
|
53608-SX8-F03 |
— | ||
|
12
|
12
53626-SX8-F02
Rack comp
|
53626-SX8-F02 |
— | ||
|
13
|
13
53630-S04-J54 End compCYLINDER |
53630-S04-J54 |
US $120.96 |
||
|
14
|
14
53641-SX8-F03
Valve sub assy.
|
53641-SX8-F03 |
— | ||
|
15
|
15
53645-SX8-T02
Housing comp
|
53645-SX8-T02 |
— | ||
|
16
|
16
53660-S50-003 Oil seal27X38X5.5 (SHOWA) |
53660-S50-003 |
from US $7.16 |
||
|
17
|
17
53661-S50-003
Washer
|
53661-S50-003 |
— | ||
|
18
|
18
53666-S50-003 O-ring41.5X2 (SHOWA) |
53666-S50-003 |
from US $2.31 |
||
|
19
|
19
53670-SX8-F02
Pipe comp. a
|
53670-SX8-F02 |
— | ||
|
20
|
20
53671-SX8-F02
Pipe comp. b
|
53671-SX8-F02 |
— | ||
|
21
|
21
90601-S50-003 CirclipEXTERNAL, 20MM |
90601-S50-003 |
US $1.61 |
||
|
22
|
22
90105-S50-003 BoltFLANGE, 8X28 |
90105-S50-003 |
US $3.26 |
