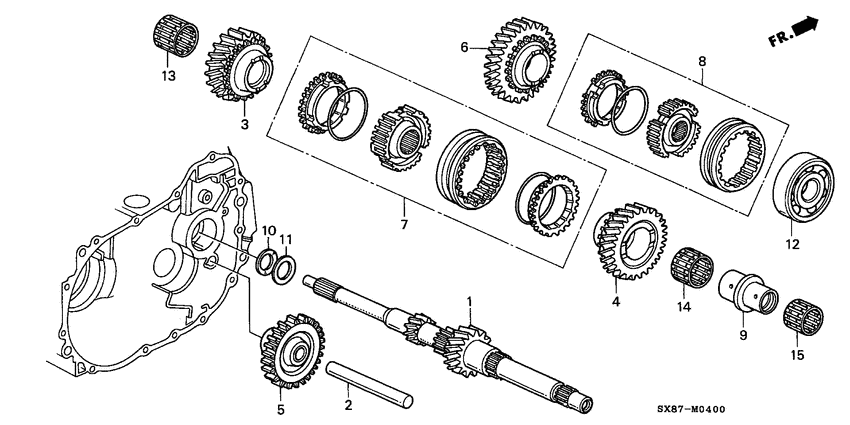

Mainshaft Diagram Honda CITY
- Year
- 2002
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 5MT
- Number of doors
- 4
- grade
- EXI-S
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23210-P3T-000 Mainshaft comp. |
23210-P3T-000 |
US $289.28 |
||
|
2
|
2
23261-PL3-000
Shaft
|
23261-PL3-000 |
— | ||
|
3
|
3
23441-P20-A00 GearMAINSHAFT THIRD |
23441-P20-A00 |
US $98.60 |
||
|
4
|
4
23451-P20-D00 GearMAINSHAFT FOURTH |
23451-P20-D00 |
US $92.80 |
||
|
5
|
5
23540-PL3-000 Gear compREVERSE IDLE |
23540-PL3-000 |
US $60.80 |
||
|
6
|
6
23581-P20-D00 GearMAINSHAFT FIFTH |
23581-P20-D00 |
US $92.80 |
||
|
7
|
7
23623-P20-315
Sleeve set
|
23623-P20-315 |
— | ||
|
8
|
8
23626-PL3-325
Sleeve set
|
23626-PL3-325 |
— | ||
|
9
|
9
23915-P20-000
Collar
|
23915-P20-000 |
— | ||
|
10
|
10
23927-PL3-000
Washer
|
23927-PL3-000 |
— | ||
|
11
|
11
23928-PL3-000
Washer
|
23928-PL3-000 |
— | ||
|
12
|
12
91004-PL3-A03 BearingRADIAL BALL, 22X65X17/18 (NTN) |
91004-PL3-A03 |
from US $12.46 |
||
|
13
|
13
91106-PL3-008 BearingNEEDLE, 34X39X23 |
91106-PL3-008 |
US $6.51 |
||
|
14
|
14
91107-PL3-018 BearingNEEDLE, 34X39X27.5 |
91107-PL3-018 |
US $6.51 |
||
|
15
|
15
91108-PL3-008 BearingNEEDLE, 32X37X23.5 (NTN) |
91108-PL3-008 |
US $6.51 |
