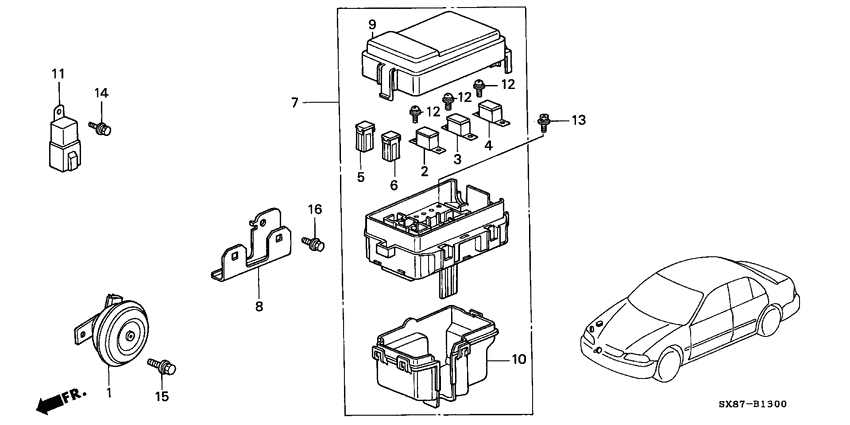

Control unit (ENGINE ROOM) Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-SX8-T01
Horn assy
|
38100-SX8-T01 |
— | ||
|
2
|
2
38212-SM4-003 FuseBLOCK (40A) |
38212-SM4-003 |
US $5.18 |
||
|
3
|
3
38213-SM4-003 FuseBLOCK (50A) |
38213-SM4-003 |
from US $6.36 |
||
|
4
|
4
38215-SX8-003 FuseBLOCK (70A) |
38215-SX8-003 |
from US $5.87 |
||
|
5
|
5
38231-S04-003 FuseBLOCK (30A) |
38231-S04-003 |
US $2.31 |
||
|
6
|
6
38231-S04-961 FuseBLOCK (40A) |
38231-S04-961 |
US $2.31 |
||
|
7
|
7
38250-SX8-T01
Box assy
|
38250-SX8-T01 |
— | ||
|
8
|
8
38251-SX8-T00
Stay
|
38251-SX8-T00 |
— | ||
|
9
|
9
38251-SX8-T01
Cover
|
38251-SX8-T01 |
— | ||
|
10
|
10
38252-SX8-T01 CoverLOWER |
38252-SX8-T01 |
US $10.78 |
||
|
11
|
11
39795-SB2-003 Relay assyPOWER (4P) (MITSUBA) (RC-2201) |
39795-SB2-003 |
US $40.58 |
||
|
12
|
12
90129-SX8-003 Screw-washer5X12 |
90129-SX8-003 |
US $1.61 |
||
|
13
|
13
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
14
|
14
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
15
|
15
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
16
|
16
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
