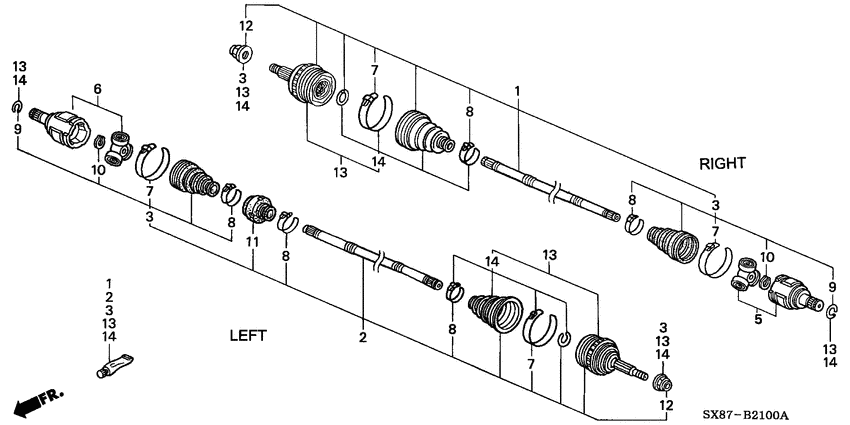

Front driveshaft ('99) Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44010-SX8-M01
Driveshaft set
|
44010-SX8-M01 |
— | ||
|
2
|
2
44011-SX8-M01
Driveshaft set
|
44011-SX8-M01 |
— | ||
|
3
|
3
44017-S04-020 Boot setINBOARD |
44017-S04-020 |
US $70.40 |
||
|
5
|
5
44310-S04-300 Joint compINBOARD |
44310-S04-300 |
US $393.04 |
||
|
6
|
6
44310-S04-900 Joint compINBOARD |
44310-S04-900 |
US $393.04 |
||
|
7
|
7
44327-SV4-305 BandJOINT BOOT (DOUBLE ROLLED BAND) |
44327-SV4-305 |
from US $7.25 |
||
|
8
|
8
44329-SV4-305 BandSHAFT BOOT (DOUBLE ROLLED BAND) |
44329-SV4-305 |
from US $5.92 |
||
|
9
|
9
44319-S04-300 Set ring26X1.8 |
44319-S04-300 |
from US $1.85 |
||
| replacement | |||||
|
9
|
9
44319-SR1-003 Set ring26X1.8 (GKN) |
44319-SR1-003 |
US $4.49 |
||
|
10
|
10
44338-S04-300 Circlip23MM |
44338-S04-300 |
US $1.82 |
||
|
11
|
11
44351-S04-911
Damper
|
44351-S04-911 |
— | ||
|
12
|
12
90305-692-010 Nut |
90305-692-010 |
US $6.84 |
||
|
13
|
13
44014-SX8-M02 Joint setOUTBOARD (ADS) |
44014-SX8-M02 |
US $304.64 |
||
|
14
|
14
44018-SX8-M01
Boot set
|
44018-SX8-M01 |
— | ||
