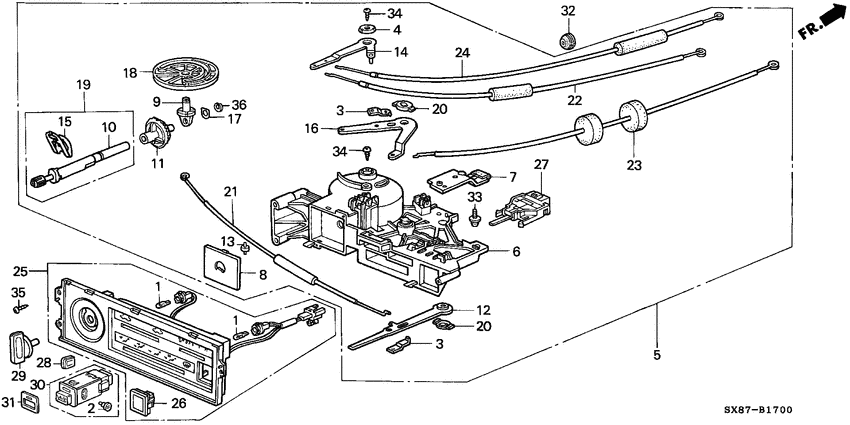

Heater control (-'00) Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
2
|
2
35851-SH3-K01
Bulb assy
|
35851-SH3-K01 |
— | ||
|
3
|
3
39356-SA7-010
Spring
|
39356-SA7-010 |
— | ||
|
4
|
4
77671-SE3-003
Washer
|
77671-SE3-003 |
— | ||
|
5
|
5
79510-SX8-F00
Control assy.
|
79510-SX8-F00 |
— | ||
|
6
|
6
79511-SH3-000
Base
|
79511-SH3-000 |
— | ||
|
7
|
7
79514-SX8-T00
Plate
|
79514-SX8-T00 |
— | ||
|
8
|
8
79516-SH3-000
Plate
|
79516-SH3-000 |
— | ||
|
9
|
9
79517-SD4-000
Mount
|
79517-SD4-000 |
— | ||
|
10
|
10
79518-SD4-000
Shaft
|
79518-SD4-000 |
— | ||
|
11
|
11
79519-SH3-010
Gear
|
79519-SH3-010 |
— | ||
|
12
|
12
79521-SH3-A00
Lever
|
79521-SH3-A00 |
— | ||
|
13
|
13
79522-SD4-000
Roller
|
79522-SD4-000 |
— | ||
|
14
|
14
79522-SH3-000
Lever
|
79522-SH3-000 |
— | ||
|
15
|
15
79523-SD4-000
Spring
|
79523-SD4-000 |
— | ||
|
16
|
16
79523-SH3-A00
Lever
|
79523-SH3-A00 |
— | ||
|
17
|
17
79524-SD4-000
Collar
|
79524-SD4-000 |
— | ||
|
18
|
18
79525-SH3-010
Link
|
79525-SH3-010 |
— | ||
|
19
|
19
79526-SD4-000
Shaft comp.
|
79526-SD4-000 |
— | ||
|
20
|
20
79529-SH3-000
Stopper
|
79529-SH3-000 |
— | ||
|
21
|
21
79541-SX8-F00
Cable
|
79541-SX8-F00 |
— | ||
|
22
|
22
79542-SX8-F00
Cable
|
79542-SX8-F00 |
— | ||
|
23
|
23
79543-SX8-F00
Cable
|
79543-SX8-F00 |
— | ||
|
24
|
24
79544-SX8-F00
Cable
|
79544-SX8-F00 |
— | ||
|
25
|
25
79550-SH3-A02
Illumination assy.
|
79550-SH3-A02 |
— | ||
|
26
|
26
79552-SH3-013
Lid
|
79552-SH3-013 |
— | ||
|
27
|
27
79570-SH3-003
Switch assy
|
79570-SH3-003 |
— | ||
|
28
|
28
79581-SH3-000
Knob
|
79581-SH3-000 |
— | ||
|
29
|
29
79582-SH3-000
Knob
|
79582-SH3-000 |
— | ||
|
30
|
30
80410-SH3-K21
Switch assy
|
80410-SH3-K21 |
— | ||
|
31
|
31
80411-SH3-K21
Panel
|
80411-SH3-K21 |
— | ||
|
32
|
32
90689-SD2-000
Grommet
|
90689-SD2-000 |
— | ||
|
33
|
33
93894-040-120-8 Screw-washer4X12 |
93894-040-120-8 |
from US $0.44 |
||
|
34
|
34
93913-14220 ScrewTAPPING, 4X12 |
93913-14220 |
from US $0.37 |
||
|
35
|
35
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
||
|
36
|
36
94540-04028 E-ring4MM |
94540-04028 |
US $1.33 |
