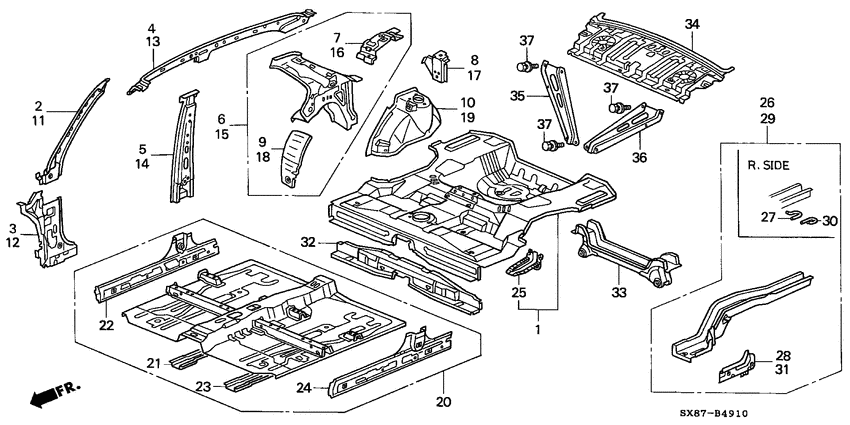

Inner panels Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04655-SX8-T01ZZ
Panel set
|
04655-SX8-T01ZZ |
— | ||
|
2
|
2
64121-SX8-T00ZZ
Pillar
|
64121-SX8-T00ZZ |
— | ||
|
3
|
3
64130-SX8-F01ZZ
Pillar comp.
|
64130-SX8-F01ZZ |
— | ||
|
4
|
4
64211-SX8-F00ZZ
Rail
|
64211-SX8-F00ZZ |
— | ||
|
5
|
5
64220-SX8-Y00ZZ
Pillar comp.
|
64220-SX8-Y00ZZ |
— | ||
|
6
|
6
64300-SX8-T00ZZ
Panel comp
|
64300-SX8-T00ZZ |
— | ||
|
7
|
7
64310-SX8-T00ZZ
Support comp
|
64310-SX8-T00ZZ |
— | ||
|
8
|
8
64316-SX8-M01ZZ
Anchor
|
64316-SX8-M01ZZ |
— | ||
|
9
|
9
64321-SX8-T00ZZ
Extension
|
64321-SX8-T00ZZ |
— | ||
|
10
|
10
64330-SX8-T30ZZ
Wheelhouse comp.
|
64330-SX8-T30ZZ |
— | ||
|
11
|
11
64521-SX8-T00ZZ
Pillar
|
64521-SX8-T00ZZ |
— | ||
|
12
|
12
64530-SX8-F01ZZ
Pillar comp.
|
64530-SX8-F01ZZ |
— | ||
|
13
|
13
64611-SX8-F00ZZ
Rail
|
64611-SX8-F00ZZ |
— | ||
|
14
|
14
64620-SX8-Y00ZZ
Pillar comp.
|
64620-SX8-Y00ZZ |
— | ||
|
15
|
15
64700-SX8-T00ZZ
Panel comp
|
64700-SX8-T00ZZ |
— | ||
|
16
|
16
64710-SX8-T00ZZ
Support comp
|
64710-SX8-T00ZZ |
— | ||
|
17
|
17
64716-SX8-M01ZZ
Anchor
|
64716-SX8-M01ZZ |
— | ||
|
18
|
18
64721-SX8-T00ZZ
Extension
|
64721-SX8-T00ZZ |
— | ||
|
19
|
19
64730-SX8-T30ZZ
Wheelhouse comp.
|
64730-SX8-T30ZZ |
— | ||
|
20
|
20
65100-SX8-T51ZZ
Floor comp
|
65100-SX8-T51ZZ |
— | ||
|
21
|
21
65116-SX8-T00ZZ
Frame
|
65116-SX8-T00ZZ |
— | ||
|
22
|
22
65140-SX8-T01ZZ
Sill comp.
|
65140-SX8-T01ZZ |
— | ||
|
23
|
23
65166-SX8-T00ZZ
Frame
|
65166-SX8-T00ZZ |
— | ||
|
24
|
24
65190-SX8-T01ZZ
Sill comp.
|
65190-SX8-T01ZZ |
— | ||
|
25
|
25
65513-SX8-T01ZZ
Stiffener
|
65513-SX8-T01ZZ |
— | ||
|
26
|
26
65610-SX8-T01ZZ
Frame comp
|
65610-SX8-T01ZZ |
— | ||
|
27
|
27
65618-SX8-T00ZZ
Rod
|
65618-SX8-T00ZZ |
— | ||
|
28
|
28
65640-SX8-T01ZZ
Extension comp
|
65640-SX8-T01ZZ |
— | ||
|
29
|
29
65660-SX8-T01ZZ
Frame comp
|
65660-SX8-T01ZZ |
— | ||
|
30
|
30
65668-SX8-T00ZZ
Rod
|
65668-SX8-T00ZZ |
— | ||
|
31
|
31
65690-SX8-T01ZZ
Extension comp
|
65690-SX8-T01ZZ |
— | ||
|
32
|
32
65700-SX8-T00ZZ
Crossmember comp.
|
65700-SX8-T00ZZ |
— | ||
|
33
|
33
65750-SX8-T01ZZ
Crossmember comp.
|
65750-SX8-T01ZZ |
— | ||
|
34
|
34
66500-SX8-T01ZZ
Shelf comp.
|
66500-SX8-T01ZZ |
— | ||
|
35
|
35
66521-SX8-T01ZZ
Gusset
|
66521-SX8-T01ZZ |
— | ||
|
36
|
36
66571-SX8-T01ZZ
Gusset
|
66571-SX8-T01ZZ |
— | ||
|
37
|
37
93404-060-120-9 Bolt-washer6X12 |
93404-060-120-9 |
US $0.52 |
