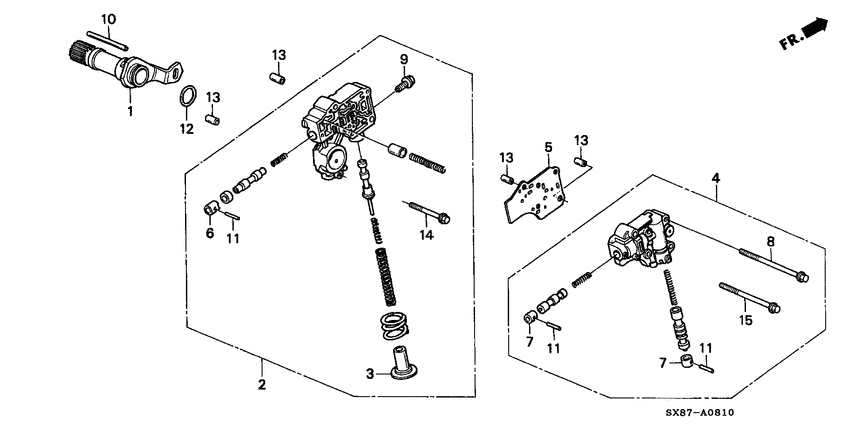

Regulator (1) Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25155-PL4-000
Shaft assy
00000000 - 5046880 |
25155-PL4-000 |
— | ||
|
2
|
2
27200-P48-800
Regulator assy
00000000 - 5046880 |
27200-P48-800 |
— | ||
|
3
|
3
27246-PN6-800 CapREGULATOR SPRING 00000000 - 5046880 |
27246-PN6-800 |
US $16 |
||
|
4
|
4
27600-PL4-900 Body assyLOCK UP VALVE 00000000 - 5046880 |
27600-PL4-900 |
US $120.32 |
||
|
5
|
5
27612-PL4-000 PlateLOCK UP SEPARATING 00000000 - 5046880 |
27612-PL4-000 |
US $7 |
||
|
6
|
6
27645-PL1-000 CapLOCK UP CONTROL 00000000 - 5046880 |
27645-PL1-000 |
US $3.78 |
||
|
7
|
7
27728-PF4-000 CapREVERSE CONTROL VALVE 00000000 - 5046880 |
27728-PF4-000 |
US $1.54 |
||
|
8
|
8
95701-060-900-8 BoltFLANGE, 6X90 00000000 - 5046880 |
95701-060-900-8 |
from US $0.89 |
||
|
9
|
9
90089-PC9-000 BoltSTOPPER, 6MM 00000000 - 5046880 |
90089-PC9-000 |
US $1.75 |
||
|
10
|
10
90703-PL4-000 Dowel pin8X68 00000000 - 5046880 |
90703-PL4-000 |
US $2.80 |
||
|
11
|
11
91101-PF4-003 Roller3.5X21.8 00000000 - 5046880 |
91101-PF4-003 |
from US $1.19 |
||
|
12
|
12
91316-612-000 O-ring27.5X1.7 00000000 - 5046880 |
91316-612-000 |
from US $2.66 |
||
|
13
|
13
94301-08140 Dowel pin8X14 00000000 - 5046880 |
94301-08140 |
from US $0.89 |
||
|
14
|
14
95701-060-600-8 BoltFLANGE, 6X60 00000000 - 5046880 |
95701-060-600-8 |
from US $0.74 |
||
|
15
|
15
95701-060-850-8 BoltFLANGE, 6X85 00000000 - 5046880 |
95701-060-850-8 |
from US $0.89 |
