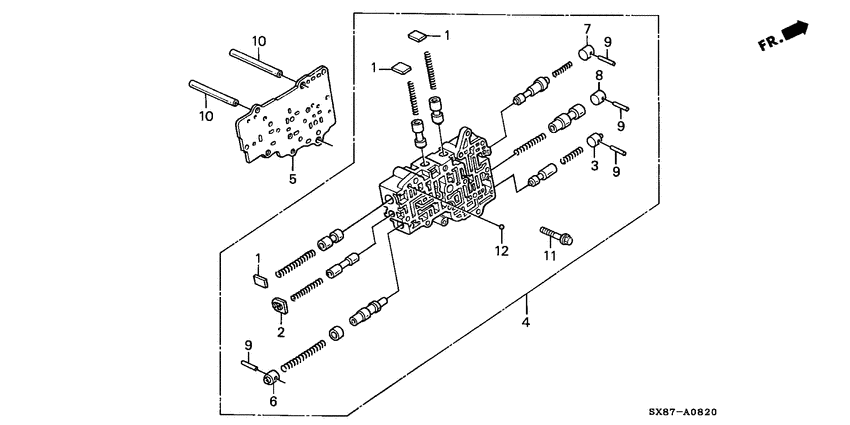

Secondary body (1) Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM 00000000 - 5046880 |
27263-PA9-000 |
US $2.66 |
||
|
2
|
2
27419-PC9-010 SEAT, VALVE SPRINGVALVE SPRING 00000000 - 5046880 |
27419-PC9-010 |
US $2.10 |
||
|
3
|
3
27653-P4M-000
Cap
00000000 - 5046880 |
27653-P4M-000 |
— | ||
|
4
|
4
27700-P4M-J10
Body assy
00000000 - 5046880 |
27700-P4M-J10 |
— | ||
|
5
|
5
27712-P48-J02
Plate
00000000 - 5046880 |
27712-P48-J02 |
— | ||
|
6
|
6
27724-PG4-000 CapKICK DOWN VALVE 00000000 - 5046880 |
27724-PG4-000 |
US $3.92 |
||
|
7
|
7
27728-PF4-000 CapREVERSE CONTROL VALVE 00000000 - 5046880 |
27728-PF4-000 |
US $1.54 |
||
|
8
|
8
27728-PP6-000
Cap
00000000 - 5046880 |
27728-PP6-000 |
— | ||
|
9
|
9
91101-PF4-003 Roller3.5X21.8 00000000 - 5046880 |
91101-PF4-003 |
from US $1.19 |
||
|
10
|
10
91704-PF4-000 Dowel pin8X40 00000000 - 5046880 |
91704-PF4-000 |
from US $2.24 |
||
|
11
|
11
95701-060-550-8 BoltFLANGE, 6X55 00000000 - 5046880 |
95701-060-550-8 |
from US $0.81 |
||
|
12
|
12
96211-07000 BallSTEEL, #7 (7/32) 00000000 - 5046880 |
96211-07000 |
from US $0.15 |
