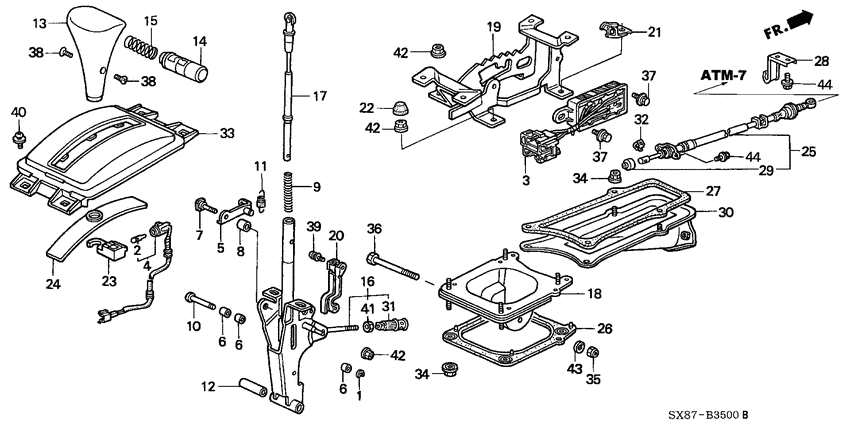

Select lever Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
35700-SH3-983
Switch assy
|
35700-SH3-983 |
— | ||
|
4
|
4
37700-SH3-981
Lamp assy.
|
37700-SH3-981 |
— | ||
|
5
|
5
54110-SH3-980
Stopper comp
|
54110-SH3-980 |
— | ||
|
6
|
6
54113-692-980
Collar
|
54113-692-980 |
— | ||
|
7
|
7
54115-SA5-981
Bolt
|
54115-SA5-981 |
— | ||
|
8
|
8
54116-SA5-980
Collar
|
54116-SA5-980 |
— | ||
|
9
|
9
54117-692-980
Spring
|
54117-692-980 |
— | ||
|
10
|
10
54119-689-981
Pin
|
54119-689-981 |
— | ||
|
11
|
11
54120-SH3-980
Spring assy
|
54120-SH3-980 |
— | ||
|
12
|
12
54123-SE0-980 CollarSELECT LEVER |
54123-SE0-980 |
US $6.44 |
||
|
13
|
13
54131-SH3-A81ZA KnobSELECT LEVER *NH1L* |
54131-SH3-A81ZA |
US $36.99 |
||
|
14
|
14
54132-SH4-982
Knob
|
54132-SH4-982 |
— | ||
|
15
|
15
54133-SA5-981
Spring
|
54133-SA5-981 |
— | ||
|
16
|
16
54135-SH3-981
Lever
|
54135-SH3-981 |
— | ||
|
17
|
17
54136-SH3-981
Rod comp
|
54136-SH3-981 |
— | ||
|
18
|
18
54200-SX8-T80
Bracket comp.
|
54200-SX8-T80 |
— | ||
|
19
|
19
54202-SH5-981
Bracket
|
54202-SH5-981 |
— | ||
|
20
|
20
54204-SH3-980
Guide
|
54204-SH3-980 |
— | ||
|
21
|
21
54205-SH3-971
Clamp
|
54205-SH3-971 |
— | ||
|
22
|
22
54209-SH3-970
Cap a
|
54209-SH3-970 |
— | ||
|
23
|
23
54211-SH3-A82
Indicator
|
54211-SH3-A82 |
— | ||
|
24
|
24
54222-SH3-980
Cover
|
54222-SH3-980 |
— | ||
|
25
|
25
54315-SX8-T81
Wire
|
54315-SX8-T81 |
— | ||
|
26
|
26
54318-SK3-E81
Seal
|
54318-SK3-E81 |
— | ||
|
27
|
27
54319-SR3-980
Seal
|
54319-SR3-980 |
— | ||
|
28
|
28
54322-SX8-T80
Clamp
|
54322-SX8-T80 |
— | ||
|
29
|
29
54341-SA0-980
Boot
|
54341-SA0-980 |
— | ||
|
30
|
30
54351-SR3-980
Bracket
|
54351-SR3-980 |
— | ||
|
31
|
31
54361-SV4-980 PipeCONTROL WIRE ADJUSTING |
54361-SV4-980 |
US $8.82 |
||
|
32
|
32
54363-689-981 PinCONTROL WIRE ADJUSTER |
54363-689-981 |
US $3.57 |
||
|
33
|
33
54710-SH3-A81
Escutcheon comp.
|
54710-SH3-A81 |
— | ||
|
34
|
34
90301-SD5-000 NutFLANGE, 6MM |
90301-SD5-000 |
from US $1.82 |
||
|
35
|
35
90308-SA0-981 NutSELF-LOCK, 6MM |
90308-SA0-981 |
from US $1.82 |
||
|
36
|
36
92201-06055-0H BoltHEX., 6X55 |
92201-06055-0H |
US $0.59 |
||
|
37
|
37
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
38
|
38
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
||
|
39
|
39
93892-040-060-G Screw-washer4X6 |
93892-040-060-G |
US $0.44 |
||
|
40
|
40
93894-050-100-8 Screw-washer5X10 |
93894-050-100-8 |
from US $0.44 |
||
|
41
|
41
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
42
|
42
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
43
|
43
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
44
|
44
95801-060-120-8 BoltFLANGE, 6X12 |
95801-060-120-8 |
from US $0.52 |
||
| replacement | |||||
|
44
|
44
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
