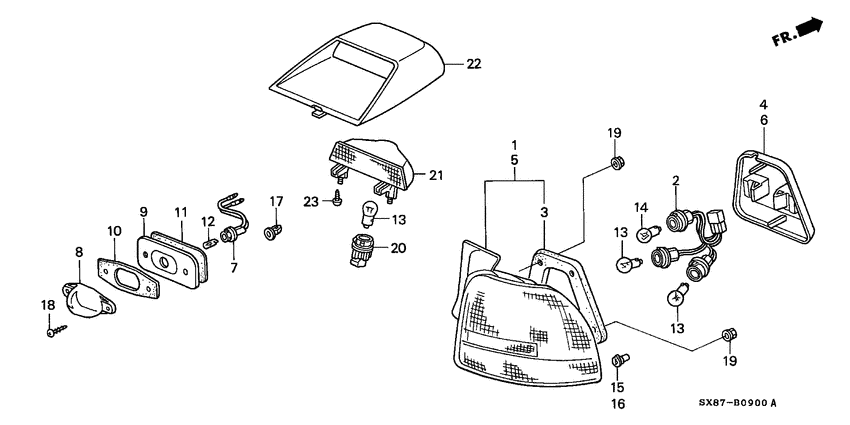

Taillight (-'00) Diagram Honda CITY
- Year
- 1998
- Model code
- CITY
- Sales region
- General
- Engine
- D13B
- transmission
- 4AT
- Number of doors
- 4
- grade
- LI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33501-SX8-N01
Lamp unit
|
33501-SX8-N01 |
— | ||
|
2
|
2
33502-SX8-N01
Socket comp.
|
33502-SX8-N01 |
— | ||
|
3
|
3
33503-SX8-T01
Gasket
|
33503-SX8-T01 |
— | ||
|
4
|
4
33505-SX8-T01
Cover
|
33505-SX8-T01 |
— | ||
|
5
|
5
33551-SX8-N01
Lamp unit
|
33551-SX8-N01 |
— | ||
|
6
|
6
33555-SX8-T01
Cover
|
33555-SX8-T01 |
— | ||
|
7
|
7
34101-SX8-T01
Socket & cord comp.
|
34101-SX8-T01 |
— | ||
|
8
|
8
34102-SX8-T01
Lens
|
34102-SX8-T01 |
— | ||
|
9
|
9
34103-SX8-T01
Housing
|
34103-SX8-T01 |
— | ||
|
10
|
10
34104-SX8-T01
Gasket
|
34104-SX8-T01 |
— | ||
|
11
|
11
34105-SX8-T01
Seal
|
34105-SX8-T01 |
— | ||
|
12
|
12
34908-SB6-741 Bulb12V 5W |
34908-SB6-741 |
US $3.66 |
||
| replacement | |||||
|
12
|
12
34351-657-921 Bulb12V/5W) (STANLEY |
34351-657-921 |
from US $1.63 |
||
|
13
|
13
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
14
|
14
34911-634-611 Bulb12V 21/5W) (ECE) (STANLEY |
34911-634-611 |
from US $2.96 |
||
|
15
|
15
90650-SL9-003 GrommetR. RR. COMBINATION (WHITE) |
90650-SL9-003 |
US $2.45 |
||
|
16
|
16
90655-SL9-003 GrommetL. RR. COMBINATION (GRAY) |
90655-SL9-003 |
US $2.80 |
||
|
17
|
17
91642-SK3-E00
Grommet
|
91642-SK3-E00 |
— | ||
|
18
|
18
93901-24520 ScrewTAPPING, 4X20 |
93901-24520 |
from US $0.37 |
||
|
19
|
19
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
20
|
20
33304-S04-G01
Socket comp.
|
33304-S04-G01 |
— | ||
|
21
|
21
34271-ST8-A12
Reflector comp.
|
34271-ST8-A12 |
— | ||
|
22
|
22
34272-SX8-T01
Housing
|
34272-SX8-T01 |
— | ||
|
23
|
23
93901-24320 ScrewTAPPING, 4X12 |
93901-24320 |
from US $0.37 |
||
