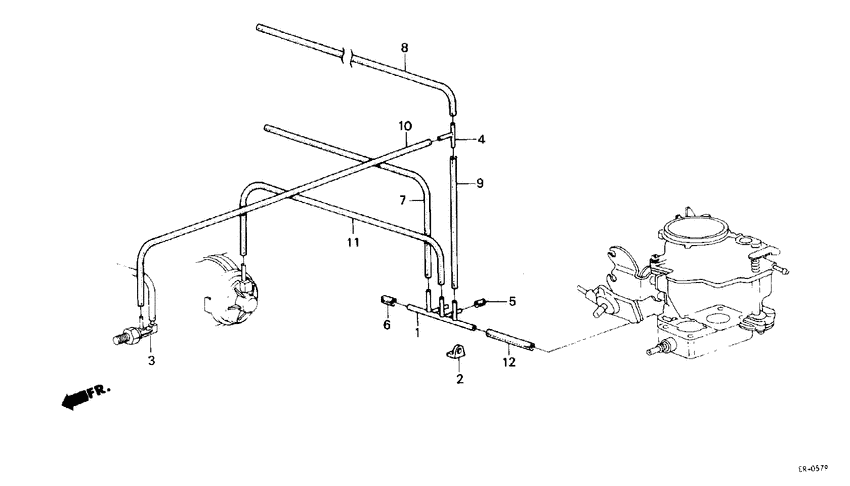

Fuel tubing ('86) Diagram Honda CITY
- Year
- 1985
- Model code
- CITY
- Sales region
- General
- Engine
- ER1
- transmission
- 5MT
- Number of doors
- 3
- grade
- PRO T
- area code
- KQ
- right-hand drive
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17324-PE8-650
Joint comp
1200001 - |
17324-PE8-650 |
— | ||
|
2
|
2
17325-PE8-601
Pillow
1200001 - |
17325-PE8-601 |
— | ||
|
3
|
3
17360-PE0-661
Thermovalve
1200001 - |
17360-PE0-661 |
— | ||
|
4
|
4
36010-679-910
Joint
1200001 - |
36010-679-910 |
— | ||
|
5
|
5
90634-PA0-000 CapSEALING 1200001 - |
90634-PA0-000 |
from US $1.86 |
||
|
7
|
7
91430-PE8-650
Tube comp
1200001 - |
91430-PE8-650 |
— | ||
|
8
|
8
91431-PE8-650
Tube comp
1200001 - |
91431-PE8-650 |
— | ||
|
9
|
9
95005-351-701-L Tube3.5X170 (95005-35001-10M) 1200001 - |
95005-351-701-L |
US $2.37 |
||
|
10
|
10
95005-352-101-J Tube3.5X210 (95005-35001-10M) 1200001 - |
95005-352-101-J |
US $2.81 |
||
|
11
|
11
95005-352-401-2 Tube3.5X240 (95005-35001-10M) 1200001 - |
95005-352-401-2 |
US $2.81 |
||
|
12
|
12
95005-550-401-0 Tube5.3X40 (95005-55001-10M) 1200001 - |
95005-550-401-0 |
US $1.18 |
