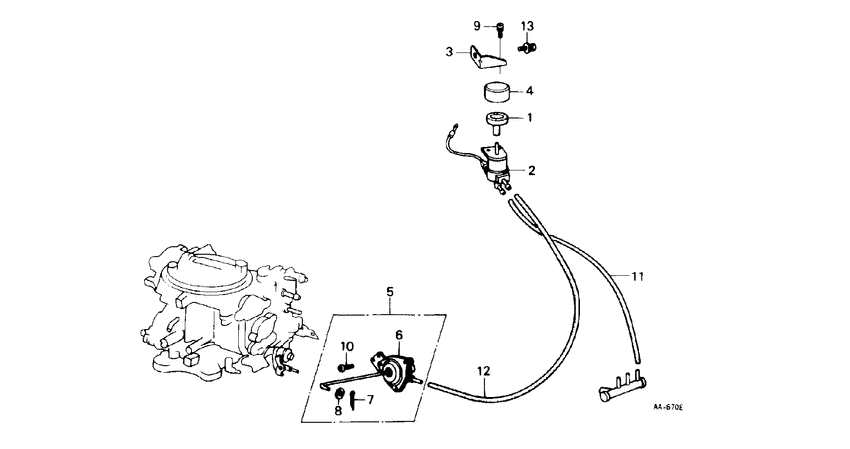

Air conditioner (AT; CARBURETOR COMPONENTS) Diagram Honda CITY
- Year
- 1985
- Model code
- CITY
- Sales region
- General
- Engine
- ER4
- transmission
- 3AT
- Number of doors
- 3
- grade
- PRO T
- area code
- KQ
- right-hand drive
- +
- air conditioner (dealer set)
- +
- master power
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36138-PA0-004 Filter assySOLENOID VALVE |
36138-PA0-004 |
US $29.56 |
||
|
2
|
2
38771-PA6-014
Valve assy.
|
38771-PA6-014 |
— | ||
|
3
|
3
38775-PC0-000
Stay
|
38775-PC0-000 |
— | ||
|
4
|
4
38776-671-000 CapAIR FILTER |
38776-671-000 |
from US $3.29 |
||
|
5
|
5
38780-PE8-641
Control set
|
38780-PE8-641 |
— | ||
|
6
|
6
38781-PD3-601
Diaphragm assy.
|
38781-PD3-601 |
— | ||
|
7
|
7
38787-PE3-601 ClipSPECIAL |
38787-PE3-601 |
US $2.17 |
||
|
8
|
8
38789-PE3-601
Plate
|
38789-PE3-601 |
— | ||
|
9
|
9
90092-657-000 Screw-washer5X8 |
90092-657-000 |
from US $1.32 |
||
|
10
|
10
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
11
|
11
95005-352-701-0 Tube3.5X270(95005-35001-10M) |
95005-352-701-0 |
US $3.26 |
||
|
12
|
12
95005-353-801-0 Tube3.5X380(95005-35001-10M) |
95005-353-801-0 |
US $4.14 |
||
|
13
|
13
95700-060-140-8 BoltFLANGE, 6X14 |
95700-060-140-8 |
from US $0.52 |
||
| replacement | |||||
|
13
|
13
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
