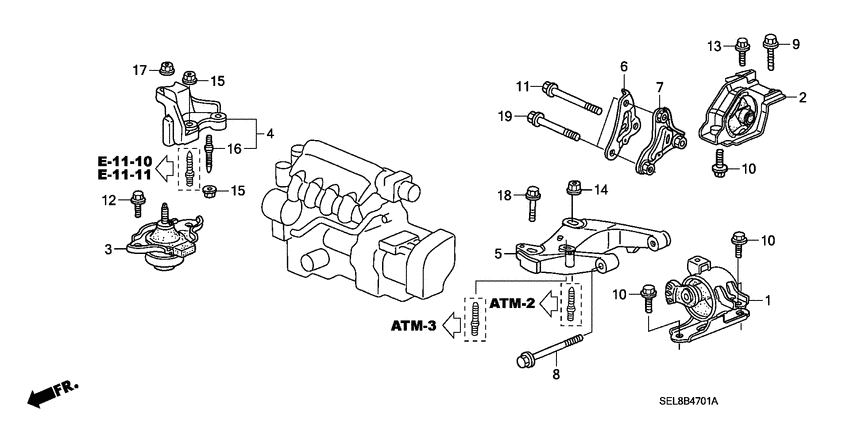

Engine mounts (CVT) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- REGD53
- transmission
- CVT
- Number of doors
- 4
- grade
- S
- area code
- PH
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50805-SAA-J81
Rubber assy.
|
50805-SAA-J81 |
— | ||
| replacement | |||||
|
1
|
1
06500-SAA-305 KIT TRNS MT |
06500-SAA-305 |
from US $96.49 |
||
|
2
|
2
50810-SEL-T81 InsulatorRR. MOUNTING RUBBER |
50810-SEL-T81 |
US $84.89 |
||
|
3
|
3
50821-SAA-013 Rubber compENGINE SIDE MOUNTING |
50821-SAA-013 |
from US $87.83 |
||
|
4
|
4
50823-SEL-T81
Bracket
|
50823-SEL-T81 |
— | ||
|
5
|
5
50825-SEL-T80
Bracket
|
50825-SEL-T80 |
— | ||
|
6
|
6
50827-SEL-T80
Bracket
|
50827-SEL-T80 |
— | ||
|
7
|
7
50828-SEL-T80
Bracket
|
50828-SEL-T80 |
— | ||
|
8
|
8
90162-SAA-000 BoltFLANGE, 10X138 |
90162-SAA-000 |
US $4.20 |
||
|
9
|
9
90163-SZ3-000 BoltFLANGE, 10X45 |
90163-SZ3-000 |
from US $2.56 |
||
|
10
|
10
90163-S5A-000 BoltFLANGE, 10X20 |
90163-S5A-000 |
from US $1.19 |
||
|
11
|
11
90164-SAA-000 BoltFLANGE, 12X100 |
90164-SAA-000 |
US $3.36 |
||
|
12
|
12
90166-SAA-000 Bolt-washer10X25 |
90166-SAA-000 |
US $1.75 |
||
|
13
|
13
90183-SL4-010 BoltFLANGE, 10X25 |
90183-SL4-010 |
US $3.08 |
||
|
14
|
14
90371-SAA-010 NutFLANGE, 12MM |
90371-SAA-010 |
US $1.75 |
||
|
15
|
15
90371-S50-000 NutFLANGE, 10MM |
90371-S50-000 |
US $2.10 |
||
|
16
|
16
90380-SAA-000 BoltSTUD, 10X70 |
90380-SAA-000 |
US $5.54 |
||
|
17
|
17
94050-12080 NutFLANGE, 12MM |
94050-12080 |
from US $0.81 |
||
|
18
|
18
95701-120-500-8 BoltFLANGE, 12X50 |
95701-120-500-8 |
from US $1.18 |
||
|
19
|
19
95701-120-900-8 BoltFLANGE, 12X90 |
95701-120-900-8 |
US $1.63 |
||
