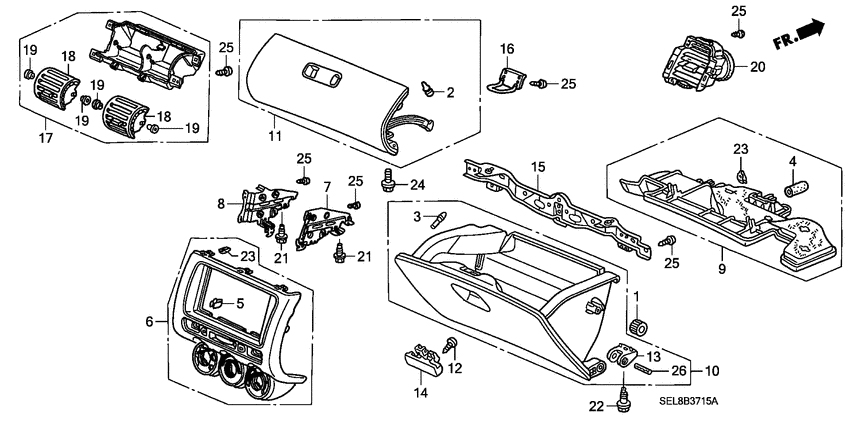

Instrument panel garnish (PASSENGER SIDE; LH) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- REGD53
- transmission
- CVT
- Number of doors
- 4
- grade
- S
- area code
- PH
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66417-SB3-670 RubberGLOVE BOX STOPPER |
66417-SB3-670 |
US $2.66 |
||
|
2
|
2
66418-SA5-000
Stopper
|
66418-SA5-000 |
— | ||
|
3
|
3
66418-SB2-000
Stopper
|
66418-SB2-000 |
— | ||
|
4
|
4
66844-SA7-000 CapINSTRUMENT PANEL STAY |
66844-SA7-000 |
US $4.07 |
||
|
5
|
5
77205-S0X-A01 ClipSNAP FITTING |
77205-S0X-A01 |
from US $1.66 |
||
|
6
|
6
77250-SEL-P10ZD
Panel assy.
|
77250-SEL-P10ZD |
— | ||
|
7
|
7
77255-SAA-902 BracketR. CENTER PANEL |
77255-SAA-902 |
US $11.06 |
||
|
8
|
8
77256-SAA-902 BracketL. CENTER PANEL |
77256-SAA-902 |
US $11.06 |
||
|
9
|
9
77345-SEL-P01ZA
Cover assy.
|
77345-SEL-P01ZA |
— | ||
|
10
|
10
77505-SEL-P01ZA
Box comp
|
77505-SEL-P01ZA |
— | ||
|
11
|
11
77510-SEL-P01ZC
Lid assy
|
77510-SEL-P01ZC |
— | ||
|
12
|
12
77511-S6A-000 ScrewTAPPING, 4X14 |
77511-S6A-000 |
US $1.33 |
||
|
13
|
13
77515-SZ3-A02 HingeGLOVE BOX |
77515-SZ3-A02 |
US $2.87 |
||
|
14
|
14
77540-S6A-003ZF Lock assyGLOVE BOX *NH361L* |
77540-S6A-003ZF |
US $15.87 |
||
|
15
|
15
77541-SEL-P00
Bracket comp.
|
77541-SEL-P00 |
— | ||
|
16
|
16
77542-SEL-T00 Striker comp.UPPER BOX |
77542-SEL-T00 |
US $9.09 |
||
|
17
|
17
77610-SEL-P02ZD
Outlet assy
|
77610-SEL-P02ZD |
— | ||
|
18
|
18
77611-SEL-013ZD Case comp.CENTER OUTLET *NH594L* |
77611-SEL-013ZD |
US $9.52 |
||
|
19
|
19
77612-SAA-003 CapCENTER |
77612-SAA-003 |
US $1.47 |
||
|
20
|
20
77620-SEL-T01ZD
Outlet assy
|
77620-SEL-T01ZD |
— | ||
|
21
|
21
90133-SM4-003 Bolt-washer5X16 |
90133-SM4-003 |
US $1.82 |
||
|
22
|
22
90140-SH3-003 Bolt-washer5X18 |
90140-SH3-003 |
US $2.44 |
||
|
23
|
23
90666-S84-A01 ClipSNAP FITTING |
90666-S84-A01 |
from US $0.88 |
||
|
24
|
24
93894-050-120-8 Screw-washer5X12 |
93894-050-120-8 |
from US $0.44 |
||
|
25
|
25
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
26
|
26
94305-50282 PinSPRING, 5X28 |
94305-50282 |
from US $0.89 |
