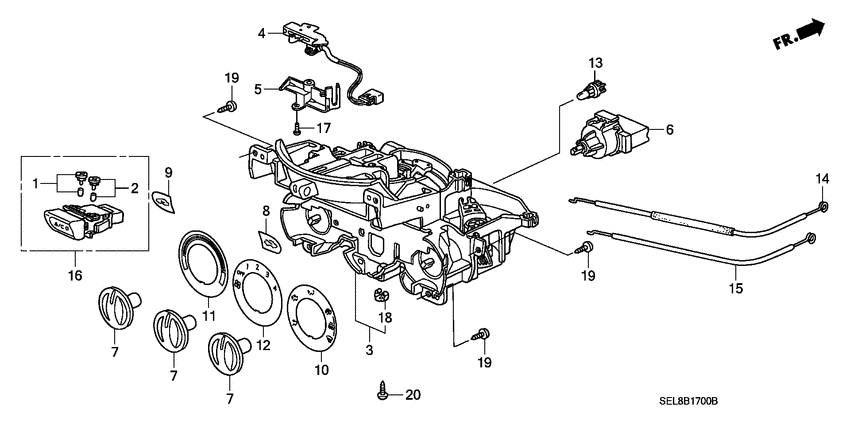

Heater control (LH) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- REGD53
- transmission
- CVT
- Number of doors
- 4
- grade
- S
- abs
- +
- area code
- PH
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35851-SAA-003 Bulb comp.14V 40MA |
35851-SAA-003 |
US $3.50 |
||
|
2
|
2
35853-SAA-013 Bulb comp.14V 70MA |
35853-SAA-013 |
US $3.50 |
||
|
3
|
3
79501-SEL-P01ZD
Base comp.
|
79501-SEL-P01ZD |
— | ||
|
4
|
4
79560-SEL-P01
Switch assy
|
79560-SEL-P01 |
— | ||
|
5
|
5
79565-SEL-P01
Cover
|
79565-SEL-P01 |
— | ||
|
6
|
6
79570-SAA-003 Switch assyHEATER FAN |
79570-SAA-003 |
US $11.70 |
||
|
7
|
7
79581-SEL-T01ZD
Knob
|
79581-SEL-T01ZD |
— | ||
|
8
|
8
79604-SEL-T01ZD
Display
|
79604-SEL-T01ZD |
— | ||
|
9
|
9
79605-SEL-T01ZD
Display
|
79605-SEL-T01ZD |
— | ||
|
10
|
10
79606-SEL-P51ZA
Display
|
79606-SEL-P51ZA |
— | ||
|
11
|
11
79607-SEL-P51ZA
Display
|
79607-SEL-P51ZA |
— | ||
|
12
|
12
79608-SEL-P51ZA
Display
|
79608-SEL-P51ZA |
— | ||
|
13
|
13
79671-SEL-T01
Bulb
|
79671-SEL-T01 |
— | ||
|
14
|
14
79675-SEL-P01
Cable
|
79675-SEL-P01 |
— | ||
|
15
|
15
79685-SEL-P01
Cable
|
79685-SEL-P01 |
— | ||
|
16
|
16
80410-SAA-G02ZD
Switch assy
|
80410-SAA-G02ZD |
— | ||
|
17
|
17
90121-SEL-003
Screw
|
90121-SEL-003 |
— | ||
|
18
|
18
91640-SM4-003 GrommetSCREW, 4MM |
91640-SM4-003 |
US $1.95 |
||
|
19
|
19
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
|
20
|
20
93913-14480 ScrewTAPPING, 4X16 (PO) |
93913-14480 |
from US $0.37 |
