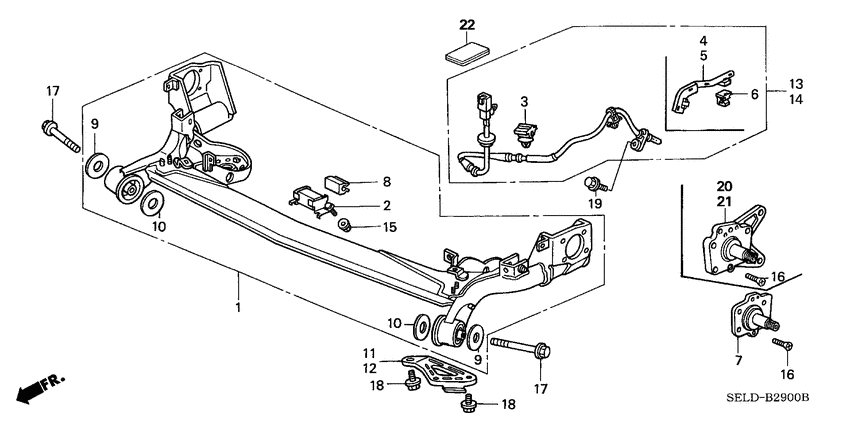

Rear axle Diagram Honda CITY
- Year
- 2005
- Model code
- CITY
- Sales region
- General
- Engine
- REGD53
- transmission
- CVT
- Number of doors
- 4
- grade
- S
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42100-SEL-T00 Beam assyRR. AXLE 00000000 - 5V100420 |
42100-SEL-T00 |
US $751.36 |
||
|
1
|
1
42100-SEL-T02 Beam assyRR. AXLE 5V100421 - |
42100-SEL-T02 |
US $753.92 |
||
|
2
|
2
42115-SAA-015 DamperRR. AXLE DYNAMIC 00000000 - 5V100420 |
42115-SAA-015 |
US $57.98 |
||
|
2
|
2
42115-SEL-015 DamperRR. AXLE DYNAMIC 5V100421 - |
42115-SEL-015 |
US $52.74 |
||
|
7
|
7
52200-SEL-000
Spindle
|
52200-SEL-000 |
— | ||
|
8
|
8
52315-SEL-000 RubberRR. STABILIZER 00000000 - 5V100420 |
52315-SEL-000 |
US $6.44 |
||
|
8
|
8
52315-SAA-000 RubberRR. STABILIZER 5V100421 - |
52315-SAA-000 |
from US $1.67 |
||
|
9
|
9
52363-SAA-E02 PlateTRAILING ARM BUSH |
52363-SAA-E02 |
US $6.44 |
||
|
10
|
10
52363-SAA-E12 PlateTRAILING ARM BUSH |
52363-SAA-E12 |
US $6.44 |
||
|
11
|
11
52450-SEL-010 BracketR. SUPPORT TRAILING ARM |
52450-SEL-010 |
US $10.36 |
||
|
12
|
12
52460-SEL-010 BracketL. SUPPORT TRAILING ARM |
52460-SEL-010 |
US $10.36 |
||
|
15
|
15
90114-SA0-000 NutSELF-LOCK, 6MM 00000000 - 5V100420 |
90114-SA0-000 |
from US $1.70 |
||
|
15
|
15
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) 5V100421 - |
90115-659-003 |
from US $1.05 |
||
|
16
|
16
90150-SEL-000 ScrewFLAT, 6X32 |
90150-SEL-000 |
US $1.33 |
||
|
17
|
17
90185-SAA-010 BoltFLANGE, 12X115 |
90185-SAA-010 |
US $5.60 |
||
|
18
|
18
93406-100-250-8 Bolt-washer10X25 |
93406-100-250-8 |
US $0.81 |
