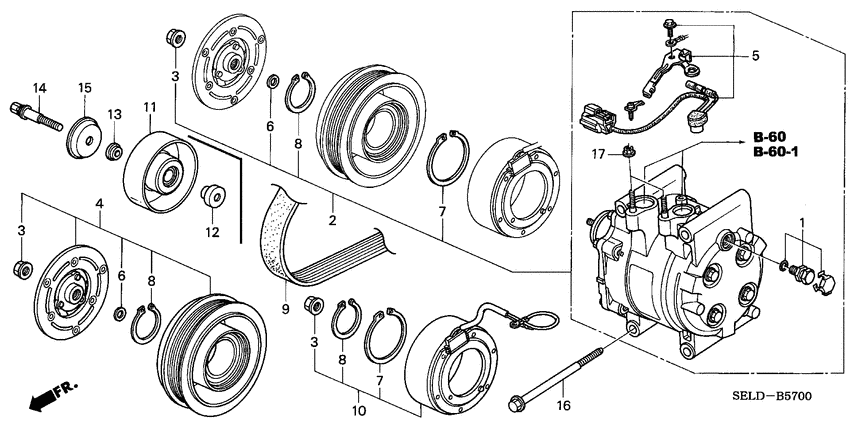

Air conditioner (COMPRESSOR; -'05) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- REGD13
- transmission
- 5MT
- Number of doors
- 4
- grade
- S
- abs
- +
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38801-PDF-E02
Valve sub assy.
|
38801-PDF-E02 |
— | ||
|
2
|
2
38810-REA-Z01 Compressor comp.SANDEN |
38810-REA-Z01 |
US $956.16 |
||
|
3
|
3
38829-PDF-E02 Nut9MM |
38829-PDF-E02 |
US $1.61 |
||
|
4
|
4
38900-PWJ-Z01
Clutch set
|
38900-PWJ-Z01 |
— | ||
|
5
|
5
38908-REA-Z01 Protector setTHERMAL |
38908-REA-Z01 |
US $47.87 |
||
|
6
|
6
38912-PE1-702 Shim set |
38912-PE1-702 |
US $3.74 |
||
|
7
|
7
38913-PP4-E02 RingSNAP |
38913-PP4-E02 |
US $3.36 |
||
|
8
|
8
38914-P07-004 Ring fSNAP |
38914-P07-004 |
US $1.89 |
||
|
9
|
9
38920-PWA-901 BeltCOMPRESSOR (MITSUBOSHI) |
38920-PWA-901 |
US $34.56 |
||
|
10
|
10
38924-REA-901 Coil setFIELD |
38924-REA-901 |
US $99.20 |
||
|
11
|
11
38942-PHM-004
Pulley comp
|
38942-PHM-004 |
— | ||
| replacement | |||||
|
11
|
11
38942-PWA-004 Pulley compIDLE |
38942-PWA-004 |
US $75.55 |
||
|
12
|
12
38944-PWA-000 CollarIDLE PULLEY |
38944-PWA-000 |
US $4.20 |
||
|
13
|
13
38945-PHM-000 CollarIDLE PULLEY (B) |
38945-PHM-000 |
US $3.57 |
||
|
14
|
14
38946-PWA-000 BoltIDLE PULLEY |
38946-PWA-000 |
US $4.13 |
||
|
15
|
15
38947-PWA-000 CoverBEARING |
38947-PWA-000 |
US $2.87 |
||
|
16
|
16
90023-PWA-000 BoltFLANGE, 8X102 |
90023-PWA-000 |
US $3.08 |
||
|
17
|
17
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
