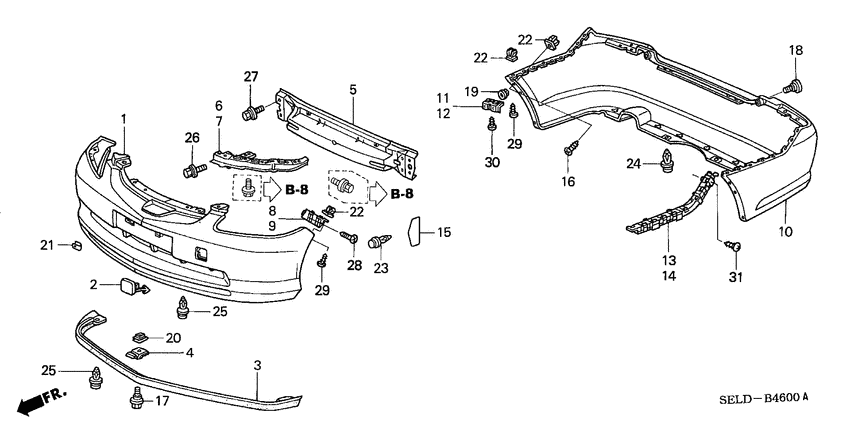

Bumpers (-'05) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- REGD13
- transmission
- 5MT
- Number of doors
- 4
- grade
- S
- abs
- +
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71101-SEL-T10ZZ
Face
|
71101-SEL-T10ZZ |
— | ||
|
2
|
2
71104-SEL-T00ZM
Cover
|
71104-SEL-T00ZM |
— | ||
|
3
|
3
71110-SEL-T01
Spoiler
|
71110-SEL-T01 |
— | ||
|
4
|
4
71111-S6A-E01 PlateSPOILER |
71111-S6A-E01 |
US $1.89 |
||
|
5
|
5
71130-SEL-T00ZZ Beam compFR. BUMPER |
71130-SEL-T00ZZ |
US $125.44 |
||
|
6
|
6
71140-SEL-T00 Beam compR. FR. BUMPER UPPER |
71140-SEL-T00 |
US $24.32 |
||
|
7
|
7
71190-SEL-T00 Beam compL. FR. BUMPER UPPER |
71190-SEL-T00 |
US $24.32 |
||
|
8
|
8
71193-SEL-T01 SpacerR. FR. BUMPER SIDE |
71193-SEL-T01 |
US $10.64 |
||
|
9
|
9
71198-SEL-T01
Spacer
|
71198-SEL-T01 |
— | ||
|
10
|
10
71501-SEL-T10ZZ
Face
|
71501-SEL-T10ZZ |
— | ||
|
11
|
11
71505-S5A-000 BracketR. RR. BUMPER SIDE |
71505-S5A-000 |
US $4.62 |
||
|
12
|
12
71555-S5A-000 BracketL. RR. BUMPER SIDE |
71555-S5A-000 |
US $4.62 |
||
|
13
|
13
71593-SEL-T02
Spacer
|
71593-SEL-T02 |
— | ||
|
14
|
14
71598-SEL-T02
Spacer
|
71598-SEL-T02 |
— | ||
|
15
|
15
74103-SEL-T00 PlateFR. BUMPER BEAM SEAL |
74103-SEL-T00 |
US $6.44 |
||
|
16
|
16
90126-SR4-000 Screw-washer5X16 |
90126-SR4-000 |
from US $2.72 |
||
|
17
|
17
90140-SEL-T00 BoltBUMPER (6MM) |
90140-SEL-T00 |
US $2.31 |
||
|
18
|
18
90149-SAA-003 BoltBUMPER |
90149-SAA-003 |
from US $1.61 |
||
|
19
|
19
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
20
|
20
90323-SE0-000 NutCLIP, 6MM |
90323-SE0-000 |
US $6.77 |
||
| replacement | |||||
|
20
|
20
90305-SH3-000 NutAIR SPOILER CLIP |
90305-SH3-000 |
from US $2.59 |
||
|
21
|
21
90675-SA5-003 NutCLIP, 6MM |
90675-SA5-003 |
from US $1.92 |
||
|
22
|
22
90682-SB0-003 GrommetSCREW, 5MM |
90682-SB0-003 |
US $1.55 |
||
|
23
|
23
91501-S04-003 ClipINNER FENDER |
91501-S04-003 |
from US $2.22 |
||
|
24
|
24
91503-SZ3-003 Clip A |
91503-SZ3-003 |
from US $1.94 |
||
|
25
|
25
91503-SZ5-003 ClipBUMPER FACE |
91503-SZ5-003 |
from US $1.75 |
||
|
26
|
26
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
27
|
27
93405-080-200-8 Bolt-washer8X20 |
93405-080-200-8 |
from US $0.74 |
||
|
28
|
28
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
|
29
|
29
93903-45480 ScrewTAPPING, 5X20 |
93903-45480 |
from US $0.38 |
||
|
30
|
30
93913-25120 ScrewTAPPING, 5X10(PO) |
93913-25120 |
from US $0.37 |
||
|
31
|
31
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
