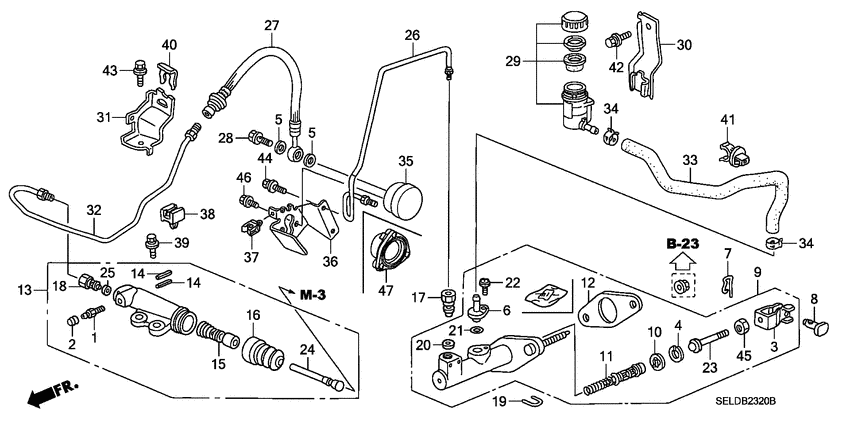

Clutch master cylinder (LH) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- REGD13
- transmission
- 5MT
- Number of doors
- 4
- grade
- S
- abs
- +
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
2
|
2
43353-SD5-003 CapBLEEDER SCREW |
43353-SD5-003 |
from US $2.12 |
||
|
3
|
3
46151-SA5-003 Yoke comp.NISSIN |
46151-SA5-003 |
US $18.24 |
||
|
4
|
4
46182-500-013 Circlip |
46182-500-013 |
from US $2.07 |
||
|
5
|
5
46472-568-000 PackingOIL BOLT |
46472-568-000 |
from US $3.18 |
||
|
6
|
6
46844-SAA-G01 Connector comp |
46844-SAA-G01 |
US $6.16 |
||
|
7
|
7
46911-S70-003 Pin, LOCK(8MM) |
46911-S70-003 |
from US $1.85 |
||
|
8
|
8
46912-S84-A00 PinCLUTCH PEDAL |
46912-S84-A00 |
from US $2.31 |
||
|
9
|
9
46920-SAA-P02 Cylinder assy.CLUTCH MASTER |
46920-SAA-P02 |
US $143.36 |
||
|
10
|
10
46921-S5A-003 PlateSTOPPER |
46921-S5A-003 |
US $3.78 |
||
|
11
|
11
46926-S5A-013
Piston comp
|
46926-S5A-013 |
— | ||
|
12
|
12
46928-S5A-003 SealMASTER CYLINDER |
46928-S5A-003 |
US $2.52 |
||
|
13
|
13
46930-SAA-013 Cylinder assy.CLUTCH SLAVE |
46930-SAA-013 |
US $79.36 |
||
|
14
|
14
46931-S5A-003 PinSPRING |
46931-S5A-003 |
US $2.31 |
||
|
15
|
15
46932-S5A-003 PistonSLAVE CYLINDER |
46932-S5A-003 |
US $23.04 |
||
|
16
|
16
46937-SS1-003
Boot
|
46937-SS1-003 |
— | ||
|
17
|
17
46941-S5A-A01 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-A01 |
US $10.78 |
||
|
18
|
18
46941-S5A-003 ConnectorCLUTCH MASTER CYLINDER |
46941-S5A-003 |
US $10.78 |
||
|
19
|
19
46942-S5A-003 PinSNAP |
46942-S5A-003 |
US $2.44 |
||
|
20
|
20
46943-S5A-003 SealRING |
46943-S5A-003 |
US $2.15 |
||
|
21
|
21
46945-S5A-003 O-ring |
46945-S5A-003 |
US $2.15 |
||
|
22
|
22
46946-S5A-003 Screw-washer4X12 |
46946-S5A-003 |
US $1.47 |
||
|
23
|
23
46947-SAA-G01
Rod
|
46947-SAA-G01 |
— | ||
|
24
|
24
46948-S5A-003 RodPUSH |
46948-S5A-003 |
US $7.56 |
||
|
25
|
25
46949-S5A-003 SealRING |
46949-S5A-003 |
US $2.15 |
||
|
26
|
26
46960-SEL-P02 Pipe comp. aCLUTCH |
46960-SEL-P02 |
US $15.49 |
||
|
27
|
27
46961-SAA-003 HoseCLUTCH |
46961-SAA-003 |
US $28.67 |
||
|
28
|
28
46963-SD4-020 BoltCLUTCH OIL |
46963-SD4-020 |
US $3.85 |
||
|
29
|
29
46965-S6A-013
Tank assy.
|
46965-S6A-013 |
— | ||
|
30
|
30
46966-SAA-G01 BracketTANK |
46966-SAA-G01 |
US $11.06 |
||
|
31
|
31
46968-SAA-003 Bracket bCLUTCH PIPE |
46968-SAA-003 |
US $5.32 |
||
|
32
|
32
46970-SAA-003 Pipe comp. bCLUTCH |
46970-SAA-003 |
US $10.22 |
||
|
33
|
33
46971-SAA-G01
Tube
|
46971-SAA-G01 |
— | ||
|
34
|
34
46972-S6F-E01 ClampTUBE (D12) |
46972-S6F-E01 |
US $2.17 |
||
|
36
|
36
46995-SAA-013 BracketDAMPER |
46995-SAA-013 |
US $29.31 |
||
|
37
|
37
46997-S04-C01 Clip APIPE (BLACK) |
46997-S04-C01 |
US $1.82 |
||
|
38
|
38
50933-SZ3-003 ClipACCUMULATOR PIPE |
50933-SZ3-003 |
US $1.61 |
||
|
39
|
39
90106-S7A-E00 BoltFLANGE, 8X30 |
90106-S7A-E00 |
US $1.61 |
||
|
40
|
40
90651-538-000 ClipBRAKE HOSE |
90651-538-000 |
from US $2.74 |
||
|
41
|
41
91594-SM4-013 ClampFUEL TUBE |
91594-SM4-013 |
US $1.26 |
||
|
42
|
42
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
43
|
43
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
44
|
44
93403-080-200-8 Bolt-washer8X20 |
93403-080-200-8 |
from US $0.74 |
||
|
45
|
45
94002-080-800-S NutHEX., 8MM |
94002-080-800-S |
from US $0.49 |
||
| replacement | |||||
|
45
|
45
94002-080-000-S NutHEX., 8MM |
94002-080-000-S |
from US $0.44 |
||
|
46
|
46
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
47
|
47
46985-SAA-013 DamperCLUTCH |
46985-SAA-013 |
from US $58.50 |
||
