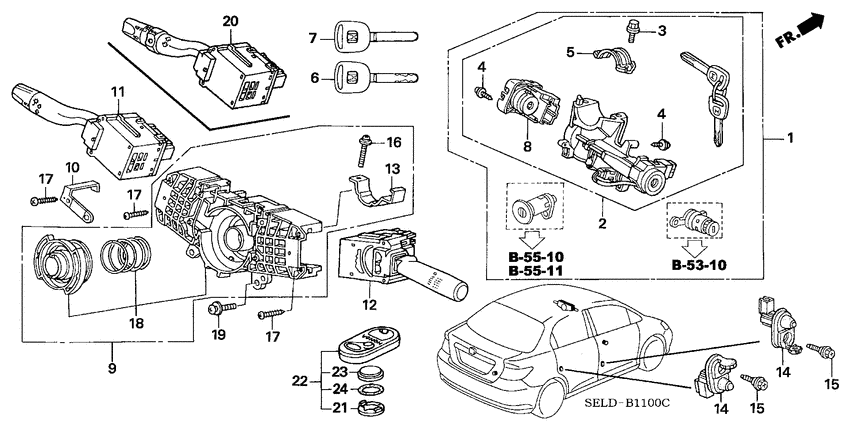

Combination switch (LH) Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- REGD13
- transmission
- 5MT
- Number of doors
- 4
- grade
- S
- abs
- +
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06350-SEL-T11
Cylinder set
|
06350-SEL-T11 |
— | ||
|
2
|
2
35100-SAA-P21 Lock assySTEERING |
35100-SAA-P21 |
US $279.04 |
||
|
3
|
3
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
4
|
4
35103-S04-003 ScrewRECESSED |
35103-S04-003 |
US $1.61 |
||
|
5
|
5
35108-S30-003 HolderCOLUMN |
35108-S30-003 |
US $1.61 |
||
|
6
|
6
35111-S6M-M01
Key comp
|
35111-S6M-M01 |
— | ||
|
6
|
6
35111-SDA-K01
Key comp.
|
35111-SDA-K01 |
— | ||
|
7
|
7
35111-S6M-307 KeyBLANK(MAIN)(BLACK) |
35111-S6M-307 |
US $39.04 |
||
|
7
|
7
35118-SDA-K01
Key
|
35118-SDA-K01 |
— | ||
|
8
|
8
35130-SAA-J51 Switch compSTEERING |
35130-SAA-J51 |
US $78.50 |
||
|
11
|
11
35255-S5A-A02 Switch assy |
35255-S5A-A02 |
US $117.77 |
||
|
12
|
12
35256-SEL-P01
Switch assy
|
35256-SEL-P01 |
— | ||
|
14
|
14
35400-S5A-013 Switch assyDOOR (MATSUSHITA) |
35400-S5A-013 |
US $10.28 |
||
|
15
|
15
90132-SAA-003 ScrewEARTH, 5X18 |
90132-SAA-003 |
US $1.68 |
||
|
17
|
17
93901-32420 ScrewTAPPING, 3X16 |
93901-32420 |
from US $0.37 |
||
|
18
|
18
35251-SCC-J11 Body compSWITCH |
35251-SCC-J11 |
US $38.02 |
||
|
19
|
19
93893-050-120-8 Screw-washer5X12 |
93893-050-120-8 |
from US $0.52 |
