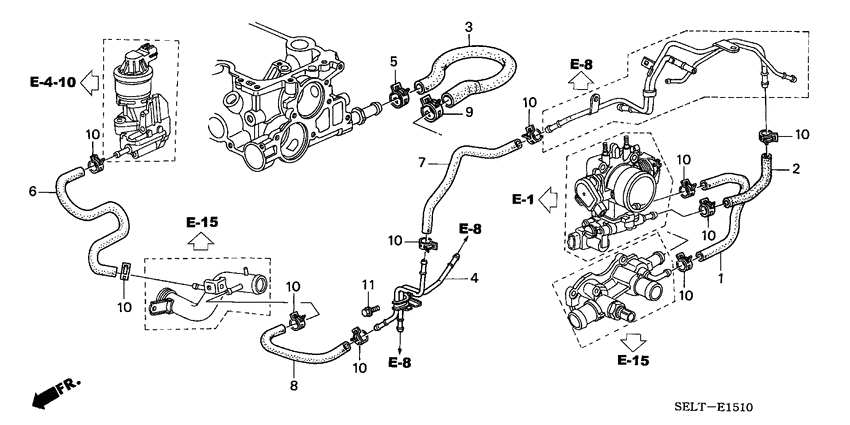

Water hose Diagram Honda CITY
- Year
- 2004
- Model code
- CITY
- Sales region
- General
- Engine
- REGD13
- transmission
- 5MT
- Number of doors
- 4
- grade
- S
- abs
- +
- area code
- PH
- left-hand drive
- +
- aluminium wheel disk
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19506-PWA-G00 HoseROTARY AIR CONTROL VALVE IN. |
19506-PWA-G00 |
US $7.65 |
||
|
2
|
2
19507-PWA-J00 HoseROTARY AIR CONTROL VALVE OUTLET |
19507-PWA-J00 |
from US $6.82 |
||
|
3
|
3
19508-REA-Z00
Hose
|
19508-REA-Z00 |
— | ||
|
4
|
4
19510-REA-Z00 Pipe compWATER |
19510-REA-Z00 |
US $15.10 |
||
|
5
|
5
19513-REA-Z01 ClampWATER HOSE |
19513-REA-Z01 |
US $2.31 |
||
|
6
|
6
19526-PWA-000 HoseEGR OUTER |
19526-PWA-000 |
US $10.91 |
||
|
7
|
7
19527-PWA-000 HoseBREATHER HEATER |
19527-PWA-000 |
US $5.21 |
||
|
8
|
8
19528-PWA-G00 HoseWATER RETURN |
19528-PWA-G00 |
US $4.72 |
||
|
9
|
9
90661-S04-003 ClipWATER HOSE |
90661-S04-003 |
US $4.56 |
||
|
10
|
10
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
||
|
11
|
11
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
