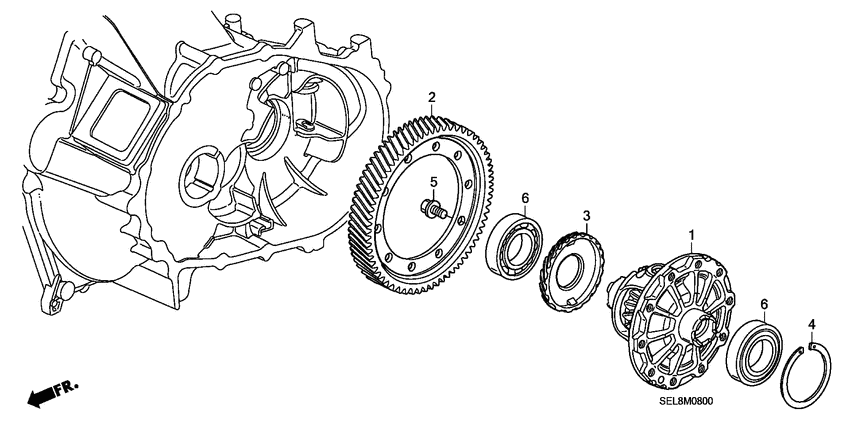

Differential Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- REFD04
- transmission
- 5MT
- Number of doors
- 4
- grade
- V
- area code
- PH
- left-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-PWL-B01 Case comp.DIFFERENTIAL |
41100-PWL-B01 |
US $279.04 |
||
|
2
|
2
41233-PWL-F60 GearFINAL DRIVEN |
41233-PWL-F60 |
US $207.36 |
||
|
3
|
3
41312-PL3-B00 GearSPEEDOMETER DRIVE |
41312-PL3-B00 |
US $17.27 |
||
|
4
|
4
41445-PL3-B00
Shim e
|
41445-PL3-B00 |
— | ||
|
4
|
4
41456-PL3-B00
Shim r
|
41456-PL3-B00 |
— | ||
|
4
|
4
41451-PL3-B00
Shim l
|
41451-PL3-B00 |
— | ||
|
4
|
4
41446-PL3-B00
Shim f
|
41446-PL3-B00 |
— | ||
|
4
|
4
41441-PL3-B00
Shim a
|
41441-PL3-B00 |
— | ||
|
4
|
4
41457-PL3-B00
Shim s
|
41457-PL3-B00 |
— | ||
|
4
|
4
41452-PL3-B00
Shim m
|
41452-PL3-B00 |
— | ||
|
4
|
4
41447-PL3-B00
Shim g
|
41447-PL3-B00 |
— | ||
|
4
|
4
41442-PL3-B00
Shim b
|
41442-PL3-B00 |
— | ||
|
4
|
4
41453-PL3-B00
Shim n
|
41453-PL3-B00 |
— | ||
|
4
|
4
41448-PL3-B00
Shim h
|
41448-PL3-B00 |
— | ||
|
4
|
4
41443-PL3-B00
Shim c
|
41443-PL3-B00 |
— | ||
|
4
|
4
41454-PL3-B00
Shim p
|
41454-PL3-B00 |
— | ||
|
4
|
4
41449-PL3-B00
Shim j
|
41449-PL3-B00 |
— | ||
|
4
|
4
41444-PL3-B00
Shim d
|
41444-PL3-B00 |
— | ||
|
4
|
4
41455-PL3-B00
Shim q
|
41455-PL3-B00 |
— | ||
|
4
|
4
41450-PL3-B00
Shim k
|
41450-PL3-B00 |
— | ||
|
5
|
5
90018-PWL-000 BoltSPECIAL, 10MM |
90018-PWL-000 |
US $1.61 |
||
|
6
|
6
91005-PPS-003 BearingBALL, 40X80X18(NTN) |
91005-PPS-003 |
from US $26.93 |
