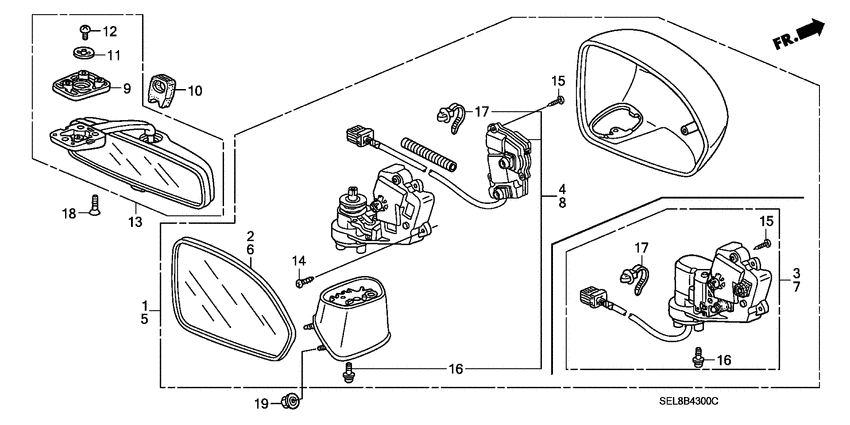

Mirror (1) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- REFD56
- transmission
- CVT
- Number of doors
- 4
- grade
- V
- area code
- PH
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76200-SEL-P22ZH
Mirror assy
|
76200-SEL-P22ZH |
— | ||
|
2
|
2
76203-SEL-P01 Mirror sub assy.R. (R1400) |
76203-SEL-P01 |
US $25.60 |
||
|
4
|
4
76210-SEL-T12
Actuator assy
|
76210-SEL-T12 |
— | ||
|
5
|
5
76250-SEL-P22ZH
Mirror assy
|
76250-SEL-P22ZH |
— | ||
|
6
|
6
76253-SEL-P01 Mirror sub assy.L. (R1400) |
76253-SEL-P01 |
US $25.60 |
||
|
8
|
8
76260-SEL-T12
Actuator assy
|
76260-SEL-T12 |
— | ||
|
9
|
9
76401-S5H-003 Base |
76401-S5H-003 |
US $4.20 |
||
|
10
|
10
76403-SH2-000 HolderRR. VIEW MIRROR |
76403-SH2-000 |
US $5.21 |
||
|
11
|
11
76409-SX8-T01 Catch |
76409-SX8-T01 |
US $1.61 |
||
|
12
|
12
76410-SX8-T01 ScrewPAN, 6X8 |
76410-SX8-T01 |
US $1.61 |
||
|
13
|
13
76430-SEL-T01ZA
Mirror & stay comp. *nh1l*
|
76430-SEL-T01ZA |
— | ||
|
14
|
14
90109-S70-003 ScrewTAPPING, 4X16 (TRUSS) |
90109-S70-003 |
US $1.05 |
||
|
15
|
15
90145-S04-006 Screw3X16 |
90145-S04-006 |
US $1.19 |
||
|
16
|
16
90145-S50-003 Screw-washer5X12 |
90145-S50-003 |
US $1.19 |
||
|
17
|
17
91545-S2A-003 ClipHARNESS BAND (BROWN) (151MM) (WITH SEAL) |
91545-S2A-003 |
US $1.89 |
||
|
18
|
18
93600-050-160-A ScrewFLAT, 5X16 |
93600-050-160-A |
from US $0.37 |
||
|
19
|
19
94071-06080 Nut-washer6MM |
94071-06080 |
from US $0.52 |
