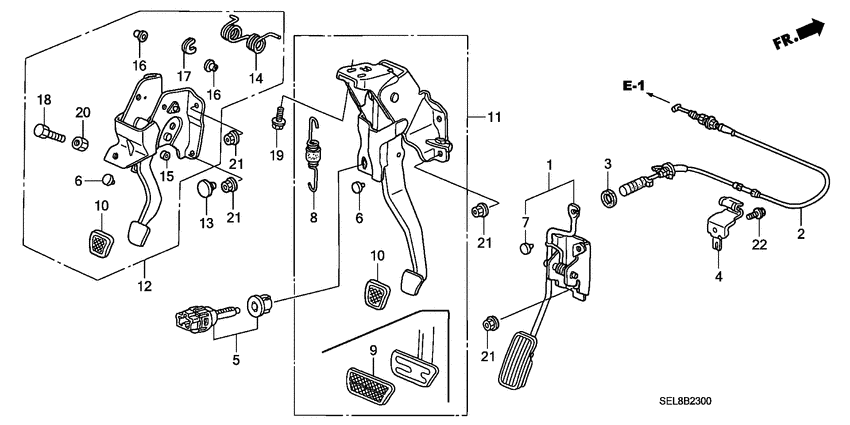

Pedal (LH) Diagram Honda CITY
- Year
- 2007
- Model code
- CITY
- Sales region
- General
- Engine
- REFD56
- transmission
- CVT
- Number of doors
- 4
- grade
- V
- area code
- PH
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-SAA-G02 Pedal assyACCELERATOR |
17800-SAA-G02 |
US $33.41 |
||
|
2
|
2
17910-SEL-P02
Wire
|
17910-SEL-P02 |
— | ||
|
3
|
3
17921-SA4-730 SealTHROTTLE CABLE |
17921-SA4-730 |
US $5.86 |
||
|
4
|
4
17932-S5A-A00 ClampTHROTTLE WIRE |
17932-S5A-A00 |
US $4.90 |
||
|
5
|
5
35350-SMA-003
Switch assy
|
35350-SMA-003 |
— | ||
|
6
|
6
46505-SA5-000 PadPEDAL STOPPER |
46505-SA5-000 |
from US $2.38 |
||
|
7
|
7
46505-SA7-000 PadPEDAL STOPPER |
46505-SA7-000 |
US $3.92 |
||
|
8
|
8
46530-SLA-981
Spring assy
|
46530-SLA-981 |
— | ||
|
9
|
9
46545-S1F-981 CoverPEDAL |
46545-S1F-981 |
from US $4.44 |
||
|
11
|
11
46600-SEL-G51 Pedal assyBRAKE |
46600-SEL-G51 |
US $61.31 |
||
|
19
|
19
93404-080-160-8 Bolt-washer8X16 |
93404-080-160-8 |
from US $0.67 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
