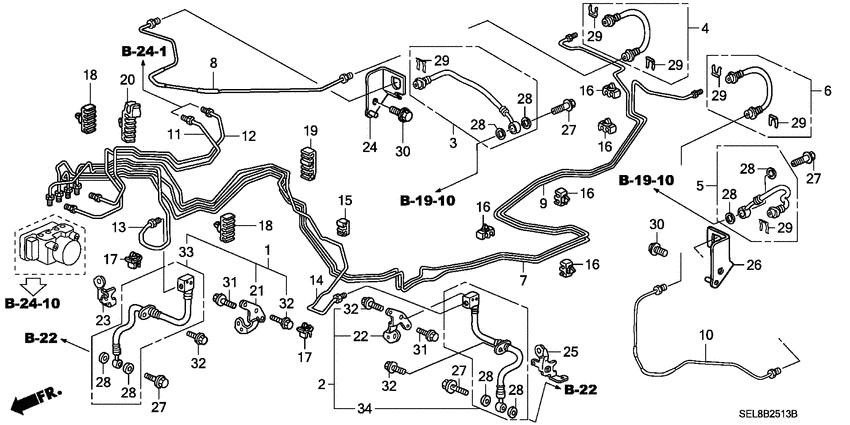

Brake lines (ABS; RH; DISK) Diagram Honda CITY
- Year
- 2008
- Model code
- CITY ZX
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EXI
- area code
- ID
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
4
|
4
01466-SEM-T02
Hose set
|
01466-SEM-T02 |
— | ||
|
6
|
6
01468-SEM-T02
Hose set
|
01468-SEM-T02 |
— | ||
|
14
|
14
46377-SEL-T62
Pipe comp. x
|
46377-SEL-T62 |
— | ||
|
33
|
33
01464-SEM-T02
Hose set
|
01464-SEM-T02 |
— | ||
|
34
|
34
01465-SEM-T02
Hose set
|
01465-SEM-T02 |
— |
