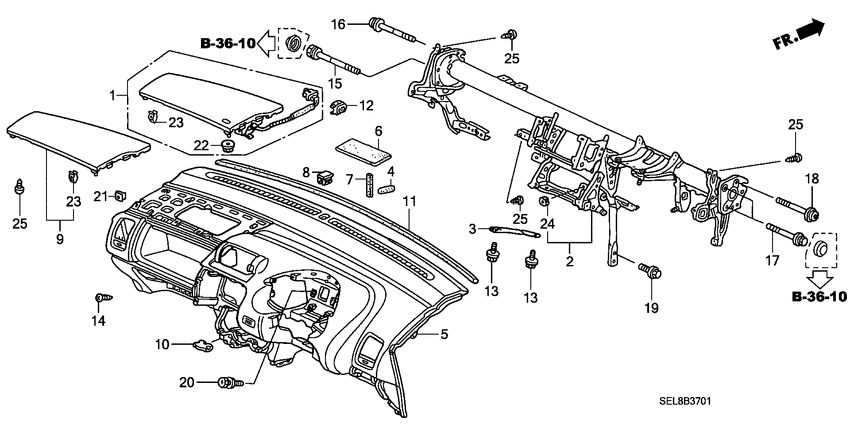

Instrument panel (RH) Diagram Honda CITY
- Year
- 2008
- Model code
- CITY ZX
- Sales region
- General
- Engine
- L15A
- transmission
- 5MT
- Number of doors
- 4
- grade
- EXI
- area code
- ID
- right-hand drive
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06780-SEL-T80ZC
Module kit
|
06780-SEL-T80ZC |
— | ||
|
2
|
2
61310-SEM-K11ZZ
Beam comp
|
61310-SEM-K11ZZ |
— | ||
|
2
|
2
61310-SEL-T01ZZ Beam compSTEERING HANGER |
61310-SEL-T01ZZ |
US $277.76 |
||
|
5
|
5
77103-SEL-T00ZG
Panel
|
77103-SEL-T00ZG |
— | ||
|
5
|
5
77103-SEL-T00ZF PanelINSTRUMENT *TYPEG* (GRAY) |
77103-SEL-T00ZF |
US $445.44 |
||
|
5
|
5
77103-SEL-T00ZH PanelINSTRUMENT *TYPET* (BEIGE) |
77103-SEL-T00ZH |
US $445.44 |
||
|
8
|
8
77108-S2K-003ZE LidAIR CONDITIONER HOLE *NH167L* |
77108-S2K-003ZE |
US $3.92 |
||
|
8
|
8
77108-S2K-003ZK LidAIR CONDITIONER HOLE *YR248L* |
77108-S2K-003ZK |
US $3.92 |
||
|
9
|
9
77190-SEL-T00ZB
Lid
|
77190-SEL-T00ZB |
— | ||
|
9
|
9
77190-SEL-T00ZC
Lid
|
77190-SEL-T00ZC |
— | ||
|
12
|
12
77982-S04-N81 HolderCOUPLER (2P) |
77982-S04-N81 |
US $2.52 |
||
|
22
|
22
90321-SP0-A80 Nut-washer6MM |
90321-SP0-A80 |
from US $1.26 |
